Распиновка разъемов автомагнитол 1






FORD

Ford



FORD FX3000 MADE IN KOREA BY INTERCONTI
A94 SX 18 C 8122 AA



FORD SOUND 2000





FORD 1998 - 1999




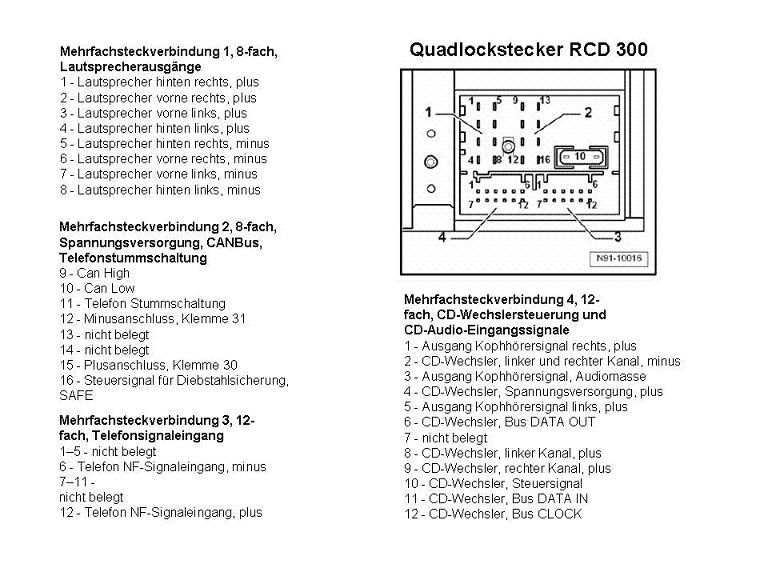

FORD 2006 R (VW SHARAN, FORD GALAXY)
95VW-18K876-JB FDZ7R2WM059374 Made In Portugal







FORD 2006 RDS (Portugal)
FORD 4500 (made in Brazil)
FORD 5000 RDS (Portugal) part no. 96AP-18K876-CC
FORD 7000 RDS (Portugal) part no. 95GB-18K876-BA







FORD 2007 RDS.





FORD 2007 RDS 94FP-18K876-HA (Без внутреннего усилителя НЧ) FORD 2007

SOUND2 RDS VWZ7Z3 (Без внутреннего усилителя НЧ)





FORD 3500 (4S61-18K876-BA)
FORD 4500 (2S61-18C815-AF)
FORD 4500 (4S61-18C815-AA)





FORD 3000, FORD 4000 (Разновидность разъёма)





FORD 3000, FORD 4000 (Ещё одна разновидность разъёма)





FORD 5000C





FORD 5000, FORD 6000, FORD 7000 (Разновидность разъёма)




FORD 5000 RDS EON (Portugal) part no. 98AP-18K876-BC




FORD 6000 MNE MP3





FORD 6006E CD RDS EON (1S7F-18C815-AD) VISTEON





FORD E-STR 22DPS710
A91SX-18K876-EA (INTERCONTI)




FORD Mondeo, Galaxy, Mazda, Ford CD MP3





FORD Windstar




FORD Radio Navigation System BP1422 (Germany)




FORD 1L2F-18C868-BB Made in MEXICO





FORD 2028 (89GB-19B160-AA) Made In Japan
PRODUCED BY SONY CORPORATION




FORD 2008 RDS Made in Portugal





FORD F57F-18C852-BE (made in Mexico)





Ford FOCUS FAKRA





FORD MONDEO FOCUS





   Ford Explorer I - 1993-1994



h



TOYOTA 18302 by Fujitsu Ten ( Philippines ).
TOYOTA 16810 by Fujitsu Ten ( USA )
TOYOTA 18403 by Fujitsu Ten ( Japan )
TOYOTA P3916 (FX-MG9427)
TOYOTA TF4300 (38408) by Fujitsu Ten ( Spain )





GENEXXA






GELHARD GXR-2XX

Gelhard GXR-2xx

A

3 -Speaker RF+

4 -Memori

4 -Speaker RF-

7 -+12V

5 -Speaker LF+

8 -Gnd

6 -Speaker LF-

B

7 -Speaker LR+

1 -Speaker RR+

8 - Speaker LR-

2 -Speaker RR-

-





GELHARD GXR-860QM

Gelhard GXR-860QM

2 -Speaker R+

12 -Speaker L+

3 -Speaker R-

13 -Speaker L-

4 -GND

14 -+12 VOLT IGNITION WIRE

5 -+12 VOLT BATTERY WIRE

15 -Power Antenna Turn On

7 -Line out R

17 -Dash Light Dimmer Wire

8 -Line out L

18 -GND Line out

10 -ANT GND

20 -ANT







GELHARD GXR 260DT





GELHARD GXR-944S




GRUNDIG WKC2830, WKC2820

Grundig WKC2830, WKC2820

1 -GND

2 -+12 VOLT IGNITION WIRE

3 -Dash Light Dimmer Wire

4 -Power Antenna Turn On

5 -+12 VOLT BATTERY WIRE





GRUNDIG WKC2841

Grundig WKC2841

1 -GND

7 -CTRL

2 -+12 VOLT IGNITION WIRE

8 -Speaker LF

3 -Dash Light Dimmer Wire

9 -Speaker RF

4 -CTRL

10- Speaker LR

5 -+12 VOLT BATTERY WIRE

11- Speaker RR

6 -GND

-





GRUNDIG

Grundig





A

B

C

1 -SCV*

1 -Speaker RR+

1 -TXD

2 -TEL MUTE

2 -Speaker RR-

2 -RXD

-

3 -Speaker RF+

3 -+A (CD)

4 -+12 VOLT BATTERY WIRE

4 -Speaker RF-

4 -+U (CD)

5 -Power Antenna Turn On

5 -Speaker LF+

5 -GND Line out

6 -Dash Light Dimmer Wire

6 -Speaker LF-

6 -GND

7 -+12 VOLT IGNITION WIRE

7 -Speaker LR+

7 -Line out RF

8 -GND

8 -Speaker LR-

8 -Line out RR

-

-

9 -Line out LF

-

SCV*-Speed Control Volume

10-Line out LR





GRUNDIG

Grundig





A

B

C

1 -SCV*

1-Speaker RR+

1-Line out LR

11-AUX IN

2 -TEL MUTE

2-Speaker RR-

2-Line out RR

12-AUX GND

3 -   ---

3-Speaker RF+

3-GND Line out

13-CD-BUS

4 -+12 VOLT BATTERY WIRE

4-Speaker RF-

4-Line out LF

15-CD-BUS GND

5 -Power Antenna Turn On

5-Speaker LF+

5-Line out RF

16-+A (CD)

6 -Dash Light Dimmer Wire

6-Speaker LF-

6-12V

17-+U (CD)

7 -+12 VOLT IGNITION WIRE

7-Speaker LR+

7-RXD

18-CD-NF GND

8 -GND

8-Speaker LR-

8-TXD

19-CD-NF LEFT

-

-

9-GND

20-CD-NF RIGHT

SCV*-Speed

-

-

13-20-CD Changer

Control Volume

-

-

Interface





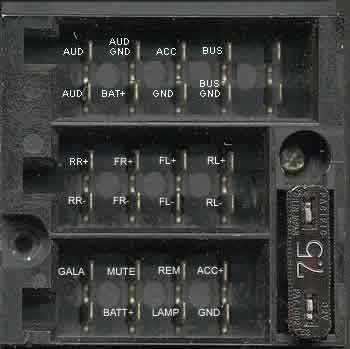

Grundig car radio iso connector





WKC3880 RDS





WKC5300 RDS





WKC2830
WKC2841







HONDA

Honda





1-Speaker RR+

6-Power Antenna Turn On

13-GND

2-Speaker LR+

7-Speaker LF+

14-Speaker LF-

3-Dash Light Dimmer Wire

8-Speaker RF+

15-Speaker RF-

4-+12 VOLT BATTERY WIRE

9-Speaker RR-

-

5-+12 VOLT IGNITION WIRE

10-Speaker LR

-





HONDA CQ-EH8160AK
HONDA CQ-EH9160A (Acura)



HONDA CQ-YH5070L
HONDA CQ-YH5071L
HONDA CQ-YH5072L
HONDA CQ-YH5074L

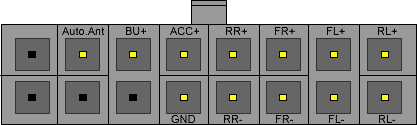

HONDA CM-839RA





HONDA 428TA (CLARION)



Honda MR527AO



Honda CM839RO (p/n 39101-S1A-G010-M1)



Honda 2TM0 (MU910A0, made in Japan)
Honda 1XM1 (39100-S10-A500) CQ-JH8814A (MATSUSHITA)







HONDA CIVIC

Honda Accord





                                                                                             Honda 1983 -1985



Honda 1996 Civic LX





Honda 2009 CRV LX t5



Honda Civic



Honda Accord 7th Gen



HYUNDAI ATOS, SONATA

Hyundai Atos, Sonata

1-+12 VOLT IGNITION WIRE

11-Speaker RF+

2-GND

12-Speaker RF-

3-+12 VOLT BATTERY WIRE

13-Speaker LF+

4-Dash Light Dimmer Wire

14-Speaker LF-

5-Power Antenna Turn On

15-Speaker LR+

9-Speaker RR+

16-Speaker LR-

10-Speaker RR-

-





HYUNDAI H510JE

Hyundai H510JE

1-Power Antenna Turn On

8-Speaker LR+

2-Speaker LR-

9-Speaker LF+

3-Speaker LF-

10-+12 VOLT IGNITION WIRE

4-Speaker RF-

11-+12 VOLT BATTERY WIRE

5-Speaker RR-

12-Speaker RF+

6 - ------

13-Speaker RR+

7-GND

14-Dash Light Dimmer Wire





HYUNDAI (Model: A22004B)






HYUNDAI ATOS
HYUNDAI SONATA



HYUNDAI H510JE





HYUNDAI H-827+EQJ2DN





HYUNDAI H-CDM8022

Using the ISO Connector

1. Если ваш автомобиль оснащен разъемом ISO, затем подключите разъемы ISO, как показано на рисунке.
2. Для подключений без разъемов ISO, проверьте проводку в автомобиле перед подключением, неправильное подключение может привести к серьезному повреждению данного устройства.
Обрежьте разъем, подключите цветные провода шнура питания к аккумуляторной батарее автомобиля, как показано в таблице ниже цветового кода для акустических и силовых кабелей связи.





INKEL S-120A1

INTERCONTI CD 3979



INTERCONTI CR-13880



ISUZU

Isuzu

1-+12 VOLT IGNITION WIRE

12-Speaker RF-

3-+12 VOLT BATTERY WIRE

13-Speaker LF+

4-Dash Light Dimmer Wire

14-Speaker LF-

5-Power Antenna Turn On

15-Speaker LR+

9-Speaker RR+

16-Speaker LR-

10-Speaker RR-

GND-обод разьема

11-Speaker RF+

-





IVECO DAILY

Iveco Daily

2-GND

3-+12 VOLT BATTERY WIRE

11-Speaker RF+

12-Speaker RF-

13-Speaker LF+

14-Speaker LF-





VISTEON RXR8F-18K876-AGLGR
(JAGUAR 9000 PREMIUM SOUND)




Jaguar AJ 9150R

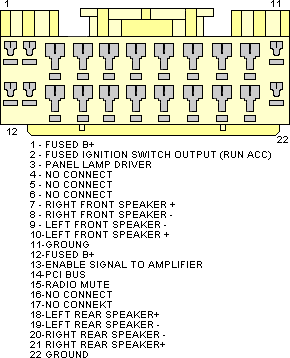

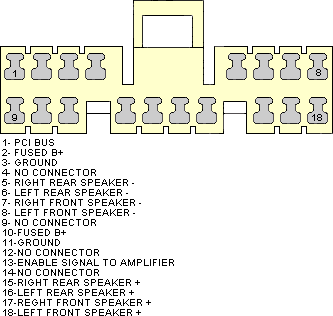

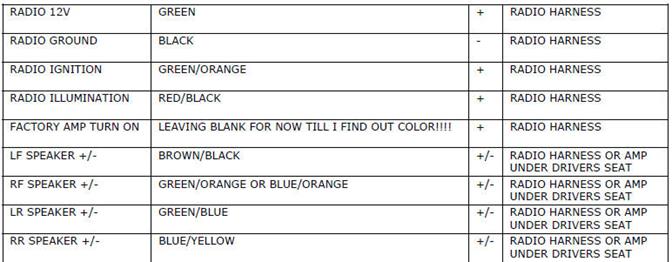

1999 – 2004 Jeep Grand Cherokee



JEEP GRANG CHEROKEE 1999 - 2004

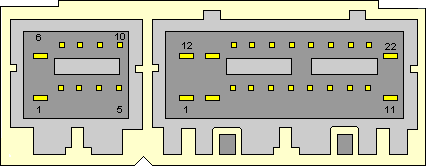

Connector radio.







22 pin cable







10 pin cable.







Connector amplifier "JEEP GRANG CHEROKEE 1999 - 2004
Plug the amplifier.



Connector amplifier "JEEP GRANG CHEROKEE 1999 - 2004
Plug the amplifier.







12 pin cable to connect the amplifier, a view from the contacts







18 pin cable to connect the amplifier, a view from the contacts

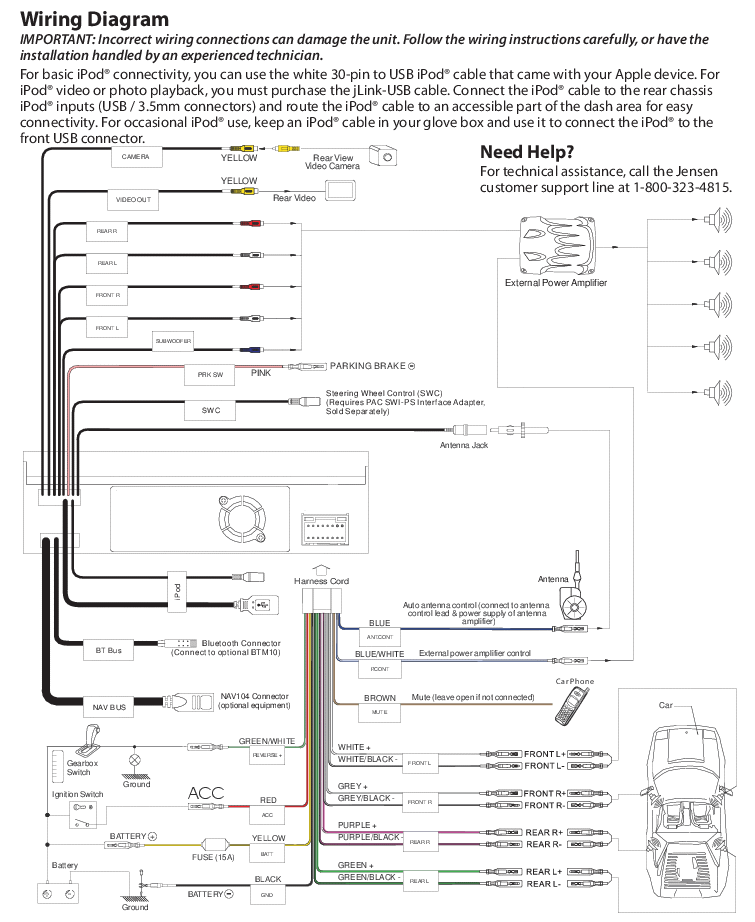

JENSEN VM9215BT Head Unit radio wiring diagram



JVC KD-GT5R

JVC KD-GT5R

1-GND

7-Power Antenna Turn On

2-Line out RF

8-+12 VOLT BATTERY WIRE

3-GND Line out FRONT

9-+12 VOLT IGNITION WIRE

4-Line out LF

10-GND Line out REAR

5-Line out RR

11-Line out LR





JVC KS-R38

JVC KS-R38

1-Speaker LR+

6-GND Speaker

2-Speaker LF+

7-+12 VOLT IGNITION WIRE

3-Speaker RF+

8-+12 VOLT BATTERY WIRE

4-Speaker RR+

9-Power Antenna Turn On

5-GND

-





JVC KS-RG4

JVC KS-RG4

4-Line out L

16-Speaker LF-

28-CD changer

5-Power Antenna Turn On

17-Speaker RF-

31-CD changer - audio GND

6-Speaker LF+

18-Speaker LR-

32-CD changer - audio Input R

7-Speaker RF+

19-Speaker RR-

33-CD changer

8-Speaker LR+

20-GND

34-CD changer

9-Speaker RR+

24-CD changer - audio Input L

35-CD changer

10-+12 VOLT IGNITION WIRE

25-CD changer

36-CD changer

13-GND Line out

26-CD changer

-

14-Line out L

27-CD changer

-





JVC KS-R38

JVC KS-R38

1-Speaker LR+

6-GND Speakerов

2-Speaker LF+

7-+12 VOLT IGNITION WIRE

3-Speaker RF+

8-+12 VOLT BATTERY WIRE

4-Speaker RR+

9-Power Antenna Turn On

5-GND

-





JVC KS-RG4

JVC KS-RG4

4-Line out L

16-Speaker LF-

28-CD changer

5-Power Antenna Turn On

17-Speaker RF-

31-CD changer - audio GND

6-Speaker LF+

18-Speaker LR-

32-CD changer - audio Input R

7-Speaker RF+

19-Speaker RR-

33-CD changer

8-Speaker LR+

20-GND

34-CD changer

9-Speaker RR+

24-CD changer - audio Input L

35-CD changer

10-+12 VOLT IGNITION WIRE

25-CD changer

36-CD changer

13-GND Line out

26-CD changer

-

14-Line out L

27-CD changer

-





JVC XL-G2500

JVC XL-G2500

1-+12 VOLT IGNITION WIRE

7-ANT GND (CHG)

2-GND

8-Line out RF

3-+12 VOLT BATTERY WIRE

9-Line out LF

4-Booster

10-GND Line out

5-ANT GND

23-Line out RR

6-ANT

24-Line out LR





JVC KS-LX200R

JVC KS-LX200R

1-GND

7-Speaker LR-

13-Speaker RF+

2-+12 VOLT IGNITION WIRE

8-Speaker LR+

14-Speaker RF-

3-Power Antenna Turn On

9-+12 VOLT BATTERY WIRE

15-Speaker LF-

5-Speaker RR+

10-Dash Light Dimmer Wire

16-Speaker LF+

6-Speaker RR-

12-TEL MUTE

-



JVC KD-G300 KD-AR300



KENWOOD KDC-7070R, KDC-5040R, KRC-958R

Kenwood KDC-7070R, KDC-5040R, KRC-958R, ...

1-GND

7-Speaker LF-

12-EXT.AMPL.CONT

2-+12 VOLT IGNITION WIRE

8-Speaker LF+

13-Speaker RR+

3-Power Antenna Turn On

9-+12 VOLT BATTERY WIRE

14-Speaker RR-

5-Speaker RF+

10-Dash Light Dimmer Wire

15-Speaker LR-

6-Speaker RF-

11-TEL MUTE

16-Speaker LR+



KENWOOD KRC-155D

Kenwood KRC-155D

1-GND

6-Speaker

3-+12 VOLT IGNITION WIRE

8-Speaker +

5-+12 VOLT BATTERY WIRE

9-Speaker -



KENWOOD KDC-84R, KDC-94R

Kenwood KDC-84R, KDC-94R

1-Input А

11-Input А

25-GND

2-GND Inputа А

17-GND линейного выхода L

26-+12 VOLT IGNITION WIRE

7-Line out L

18-GND линейного выхода R

27-Booster

8-Line out R

19-GND линейного выхода R

33-+12 VOLT BATTERY WIRE

9-Line out R

20-GND линейного выхода L

34-Dash Light Dimmer Wire

10-Line out L

-

-



KENWOOD KRC-951RDS, KRC-851D, KRC-751D/L, KRC-651D/L, KRC-451D/L

Kenwood KRC-951RDS, KRC-851D, KRC-751D/L, KRC-651D/L, KRC-451D/L, KRC-951R, KRC-852D/L, KRC-752R, KRC-453D/L, KRC-452D/L

1-ANT GND

21-+12 VOLT IGNITION WIRE

8-Dash Light Dimmer Wire

22-GND

9-+12 VOLT BATTERY WIRE

23-Speaker RR-

10-Speaker LR-

24-Speaker RR+

11-Speaker LR+

25-Speaker RF+

12-Speaker LF+

26-Speaker RF-

13-Speaker LF-

30-36-Booster

14-ANT

42-48-Booster

20-Power Antenna Turn On

-



KENWOOD KRC-951R, KRC-852D/L, KRC-752R, KRC-453D/L, KRC-452D/L

1-ANT GND

14-ANT

26-Speaker RF-

4-Line out L

17-Line out R

27-GND линейного выхода L

5-GND линейного выхода L

18-GND линейного выхода R

28-Line out L

8-Dash Light Dimmer Wire

20-Power Antenna Turn On

36-PHONE INTERFACE

9-+12 VOLT BATTERY WIRE

21-+12 VOLT IGNITION WIRE

39-GND линейного выхода R

10-Speaker LR-

22-GND

40-Line out R

11-Speaker LR+

23-Speaker RR-

48-PHONE INTERFACE

12-Speaker LF+

24-Speaker RR+

-

13-Speaker LF-

25-Speaker RF+

-

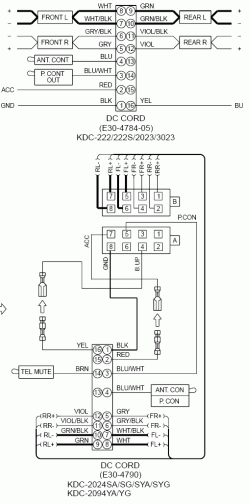

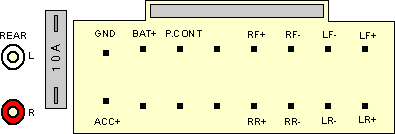

KENWOOD KDC-222, KDC-2023, KDC-3023, KDC-2024, KDC-2094



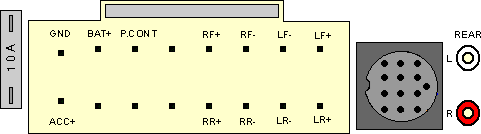

KENWOOD KRC-X727



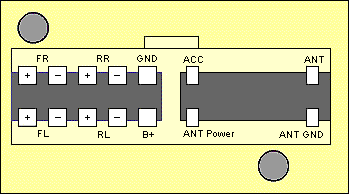

KENWOOD KRC-654RD



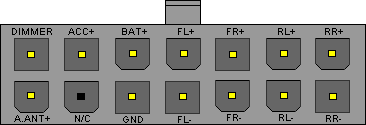

KENWOOD KRC-28YA



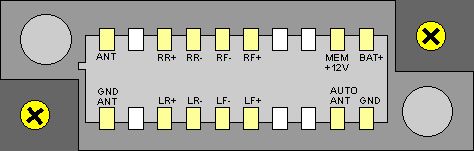

KENWOOD KRC-265



KENWOOD KRC-3631



KIA PRIDE

KIA Pride

1-+12 VOLT IGNITION WIRE

9-Speaker RR+

13-Speaker LF+

2-GND

10-Speaker RR-

14-Speaker LF-

3-+12 VOLT BATTERY WIRE

11-Speaker RF+

15-Speaker LR+

4-Dash Light Dimmer Wire

12-Speaker RF-

16-Speaker LR-




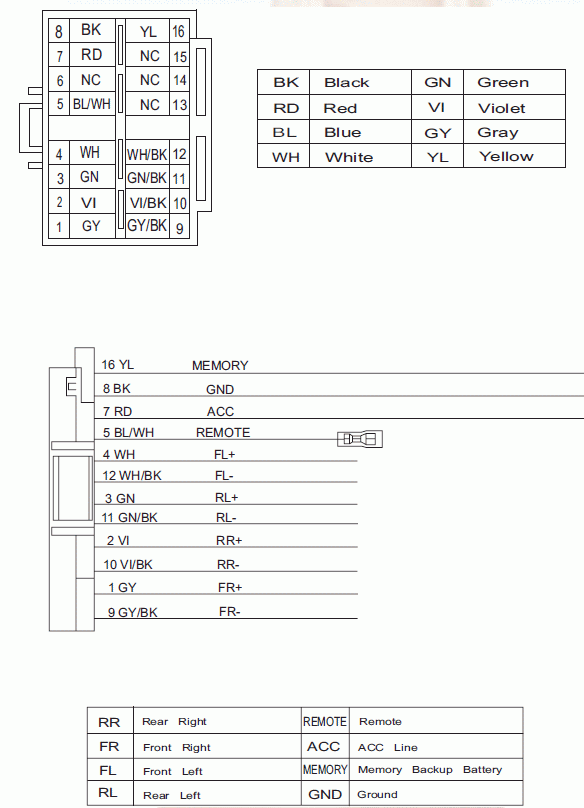

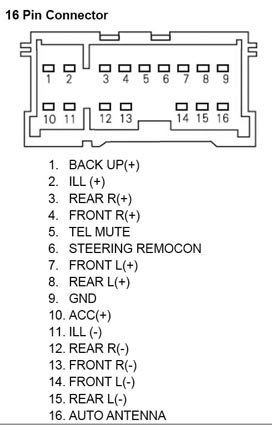

KIA AUK-2008



KIA AUK-2070




KIA SPECTRA





KIA SORENTO





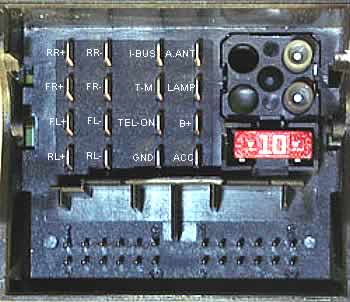

LAND ROVER 22 DC597/60L (VDO)






LEXUS NAKAMICHI



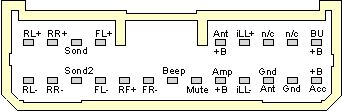

TOYOTA 86120-60350

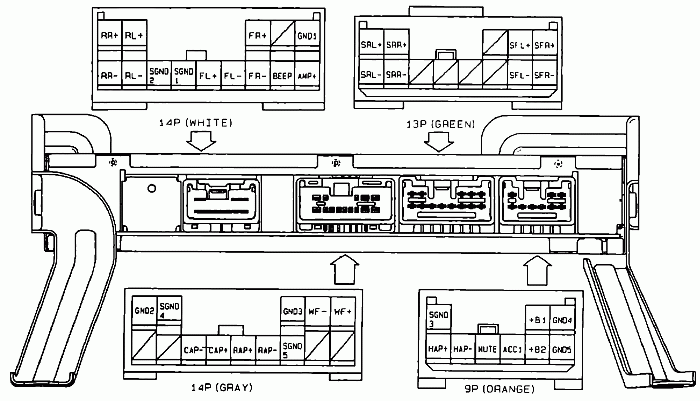

Lexus Premium Sound System



LEXUS LS400

PIONEER GM8056ZT/E



Matsushita CQ - 8160 EH S9A A200 AK 39100





( an antenna Roof) ( 2 +12 v.Accesorios.) ( 3 NC) (4 Alarm) ( 5 RR +) ( 6 RL +)

 ( 7 FR +) ( 8 FL +) ( 9 Ilum.) ( 10 +12 v. Direct) ( 11-12-13-14 NC) ( 15 RR-) ( 16 RL)

 ( 17 FR-) ( 18 - FL-) ( 19 - Rheostat board.) ( 20 - GND).



MAZDA Logic Control 3262



2001+ Miata.



Pin

Application

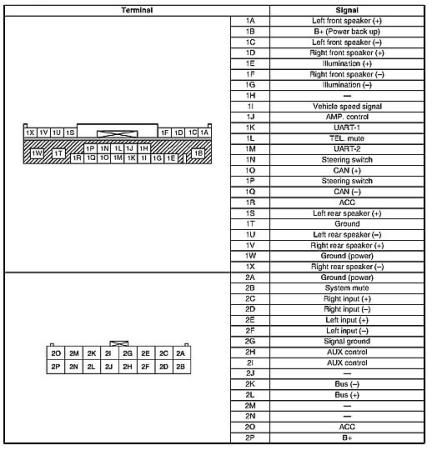

2004 Japan RX-8

4H60 Connected?

A

Power Ground

Purple/Blue

Y

B

System Mute

Green/White

N

C

Right Input+

Blue/Yellow

N

D

Right Input-

Red/Yellow

N

E

Left Input+

Red/Black

N

F

Left Input-

Violet/White

N

G

Signal Ground



Y

H

N/C



N

I

N/C



Y

J

N/C



Y

K

Bus-



Y

L

Bus+



Y

M

N/C



N

N

N/C



N

O

Power ACC

Brown/Red

Y

P

Power B+

Brown/White

Y







Application

Application/Color

'90-'96 Type 1 *

'96.5-'97 Type 1

'93-'97 Type 2 (MSSS MPSS)

'99-'00 Non-Bose

'99-'01 Bose

MX-3

A

Left Rear+

Left Headrest+

Left Headrest+

Left Door+

Left Rear+ (unused)

N/C

Left Rear+

Green

Red/ Yellow

Red/ Green







B

Left Rear-

Left Headrest-

Left Headrest-

Left Door-

Left Rear- (unused)

N/C

Left Rear-

Green/ Black

Blue/ Orange

Red/ White







C

ACC

N/C

N/C

N/C

N/C

N/C

ACC













D

Amp Control (Sw. 13.2v)

N/C

N/C

N/C

N/C

N/C

Amp Control (Sw. 13.2v)













F

Right Rear+

Right Headrest+

Right Headrest+

Right Door+

Right Rear+ (unused)

N/C

Right Rear+

Violet

Red/ Blue

Blue/ Yellow







H

Right Rear-

Right Headrest-

Right Headrest-

Right Door-

Right Rear- (unused)

N/C

Right Rear-

Violet/ Black

Blue/ White

Blue







I

System Mute

N/C

N/C

N/C

N/C

N/C

System Mute













J

N/C

N/C

N/C

N/C

N/C

N/C

N/C






Pin

General Application

Application/Color

'90-'94 Type 1 *

'95-'96 Type 1 *

'96.5-'97 Type 1

'93-'97 Type 2 (MSSS MPSS)

'99-'00 Non-Bose

'99-'01 Bose

MX-3

A

Power Supply ACC (Sw. 12v)

Power Supply ACC (Sw. 12v)

Red

Blue/ Black



B

Tele Mute

N/C

N/C

C

Power Supply +B (Con. 12v)

Power Supply +B (Con. 12v)

Yellow

Blue/ Red



D

Power Antenna (Sw. 13.2v)

N/C

Power Antenna (Sw. 13.2v)

N/C

Light Green/ Yellow

Gray/ Black



E

TNS+ (Dimmer)

TNS+ (Dimmer)

Orange/ White

Red/ Black



F

ILL- (Dimmer Return)

N/C

ILL- (Dimmer Return)

N/C

ILL- (Dimmer Return)

N/C

Red

N/C

Gray/ Red



H

Speed Sensor

N/C

Speed Sensor

N/C

N/C

Green/ Red

N/C

J

Amp Control (Sw. 13.2v)

N/C

Amp Control (Sw. 13.2v)

N/C

Light Green/ Black



K

Left Front+

Left Door+

Left Headrest+

Left Door+

Left Door+ (Differential to Amp)

Left Front+

White

Red/ Green

Red/ Yellow

Red

Yellow/ Red



L

Left Front-

Left Door-

Left Headrest-

Left Door-

Left Door- (Differential to Amp)

Left Front-

White/ Black

Red/ White

Blue/ Orange

White

Yellow/ Black



M

Right Front+

Right Door+

Right Headrest+

Right Door+

Right Door+ (Differential to Amp)

Right Front+

Gray

Blue/ Yellow

Red/ Blue

Yellow

Yellow/ Green



N

Right Front-

Right Door-

Right Headrest-

Right Door-

Right Door- (Differential to Amp)

Right Front-

Gray/ Black

Blue

Blue/ White

Orange

Green








Pin

Application
('90-'96 Type 1 only)

1

Left Output

2

Left Input

3

Right Output

4

Right Input

5

Signal Ground

6

TNS+

7

Power Supply ACC+

8

Power Supply B+

9

System On/Amp Control

10

Illumination-

11

System Off

12

System Control (Play)

13

Mute





Существует специальная процедура замыкания, при использовании других устройств вместо Mazda проигрывателя.





Pin

Application
(for '96.5-'97 Type 1, '99-'00 Non-Bose, '99-'01 Bose)

A

Right Input

B

Signal Ground

C

Left Input

D

Combi Control

E

Aux Control Out

F

Aux Control In

G

Bus Ground

H

Bus Line

I

Power Supply ACC

J

Ground

K

Power Supply +B

L

Mute

M

TNS+

N

ILL-

O

N/C

P

N/C

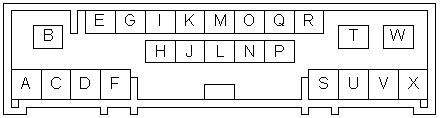

Pin

General Application

Application/Color

2003 Miata

2003 Miata Bose

2004 Miata

2004 Miata Bose

2003 MPV

2003 Protege

2004 RX-8

Mazda6 Non-Bose

Mazda6 Bose

A

Left Front +

Left Front +

Left Front +

Left Front +

Left Front +

Left Front +

Left Front +

Left Front +

Left Front +

Left Front +

Yellow/ Red

Red



Black

Blue/ Orange

Black/ Red

Red/ Blue

Red

?

B

Battery (+12V)

Battery (+12V)

Battery (+12V)

Battery (+12V)

Battery (+12V)

Battery (+12V)

Battery (+12V)

Battery (+12V)

Battery (+12V)

Battery (+12V)

Blue/ Red

Blue/ Red



Blue/ Red

Blue/ Red

Blue/ Red

Blue/ Red

Blue/ Red

Blue/ Red

C

Left Front -

Left Front -

Left Front -

Left Front -

Left Front -

Left Front -

Left Front -

Left Front -

Left Front -

Left Front -

Yellow/ Black

White



Green

Violet

Black/ White

Light Green/ Red

White

?

D

Right Front +

Right Front +

Right Front +

Right Front +

Right Front +

Right Front +

Right Front +

Right Front +

Right Front +

Right Front +

Yellow/ Green

Yellow



Red

White/ Red

Red

Blue/ White

Blue

?

E

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Pulsed Dimmer (TNS+)

Red/ Black

Red/ Black



Red/ Black

Light Green/ Blue

Light Green/ Blue

Red/ Yellow

?

?

F

Right Front -

Right Front -

Right Front -

Right Front -

Right Front -

Right Front -

Right Front -

Right Front -

Right Front -

Right Front -

Green

Orange



White

White

White

Yellow/ Green

Yellow

?

G

Inverted Dimming

Inverted Dimming

Inverted Dimming

Inverted Dimming

Inverted Dimming

Inverted Dimming

Inverted Dimming

Inverted Dimming

Inverted Dimming

Inverted Dimming

Grey/ Red

Grey/ Red



Grey/ Red

White/ Blue

White/ Blue

Grey/ Red

Black/ Red?

?

H

PWR Ant

PWR Ant

PWR Ant

PWR Ant

PWR Ant

N/C

N/C

PWR Ant

N/C

N/C

Grey/ Black

Grey/ Black



Grey/ Black





Yellow/ White





I

Speed Pulse

N/C

Speed Pulse

N/C

Speed Pulse

N/C

N/C

Speed Pulse

Speed Pulse

Speed Pulse



Green/ Red



Green/ Red





Green/ Red

Green/ Red

?

J

Amp Remote

N/C

Amp Remote

N/C

Amp Remote

Amp Remote

Amp Remote

Amp Remote

N/C

Amp Remote



Light Green/ Black



Light Green/ Black

White

Yellow (woofer?)

Purple/ Blue



?

K

Nav: Parking Brake

N/C

N/C

N/C

N/C

N/C

N/C

Nav: Parking Brake

N/C

N/C













Yellow/ Green





L

Telephone Mute

N/C

N/C

N/C

N/C

N/C

N/C

N/C

N/C

N/C



















M

Nav: Reverse

N/C

N/C

N/C

N/C

N/C

N/C

Nav: Reverse

N/C

N/C













Blue/ White





N

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls









Grey/ Black



Red/ Black

Red/ Blue?

?

O

blank

blank

blank

blank

blank

blank

blank

blank

blank

blank



















P

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls

Clockspring/ Wheel Controls









White/ Green



Green/ White

Blue/ White

?

Q

blank

blank

blank

blank

blank

blank

blank

blank

blank

blank



















R

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

IGN (+12V switched)

Blue/ Black

Blue/ Black



Blue/ Black

Purple/ Blue

Purple/ Black

Green/ Orange

Orange?

?

S

Left Rear +

Left Rear +

N/C

Left Windblocker +

Left Windblocker +

Left Rear +

Left Rear +

Left Rear +

Left Rear +

Left Rear +







Blue/ Yellow

Green/ Orange

Brown/ White

Green/ Orange

Purple

?

T

blank

blank

blank

blank

blank

blank

blank

blank

blank

blank













Black/ White

?

?

U

Left Rear -

Left Rear -

N/C

Left Windblocker -

Left Windblocker -

Left Rear -

Left Rear -

Left Rear -

Left Rear -

Left Rear -







Yellow

Green

Brown

Blue/ Orange

Pink

?

V

Right Rear +

Right Rear +

N/C

Right Windblocker +

Right Windblocker +

Right Rear +

Right Rear +

Right Rear +

Right Rear +

Right Rear +







Green/ Yellow

Yellow/ Black

Green

Grey/ Red

White/ Blue

?

W

Ground

Ground

Ground

Ground

Ground

Ground

Ground

Ground

Ground

Ground

Black

Black



Black

Black

Black

Black

Black

Black/Orange

X

Right Rear -

Right Rear -

N/C

Right Windblocker -

Right Windblocker -

Right Rear -

Right Rear -

Right Rear -

Right Rear -

Right Rear -







Green/ Black

Purple

Green/ Orange

Brown/ Red

Black/ Blue

?





Steering Wheel Controls



Переключатели управления рулевого колеса, связанные с контактами P и N.

Короткие выводы с различными уровнями сопротивлений.



Application

Resistance

Mode

1k Ohms

Vol+

150 Ohms

Vol-

60 Ohms

Track

300 Ohms

Mute

2k Ohms

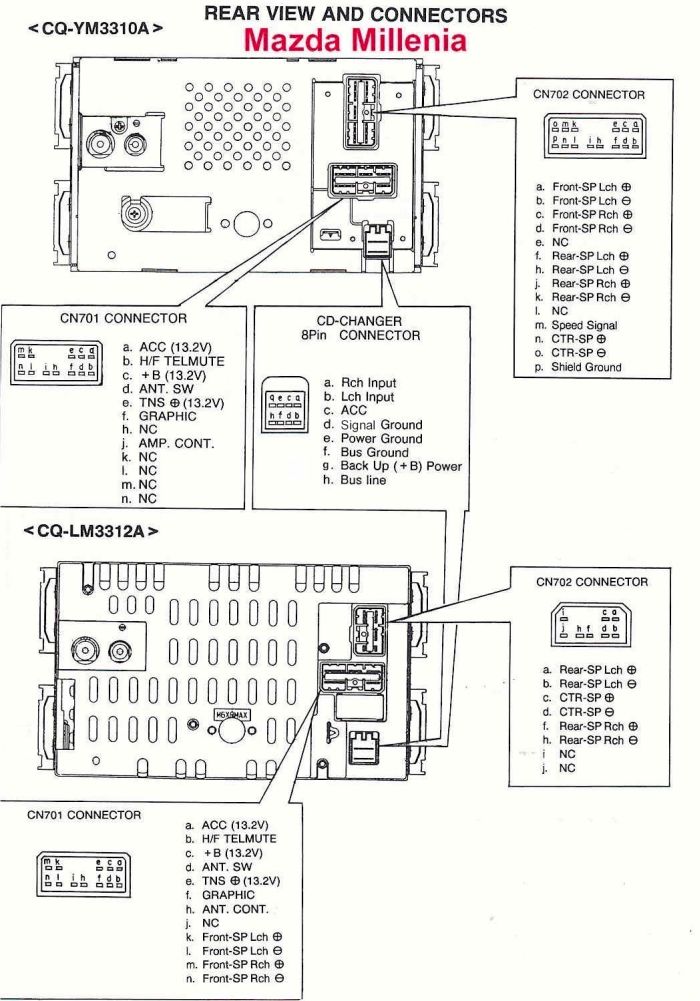

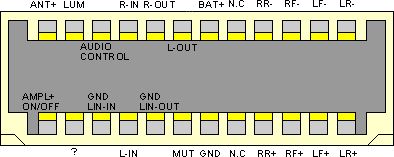

Mazda Millenia

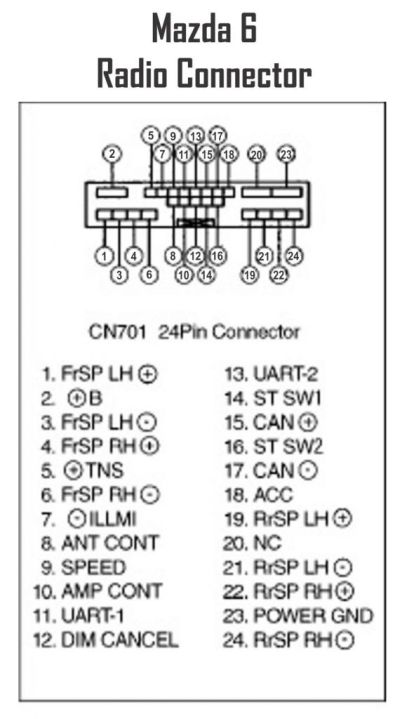

Mazda 6



Mazda model 2006



MERCEDES (BECKER AVUS, AVUS2000, GRAND PRIX)

Mercedes

A.A.-Power Antenna Turn On

1-+12 VOLT BATTERY WIRE

2-Dash Light Dimmer Wire

3-+12 VOLT IGNITION WIRE

4-GND

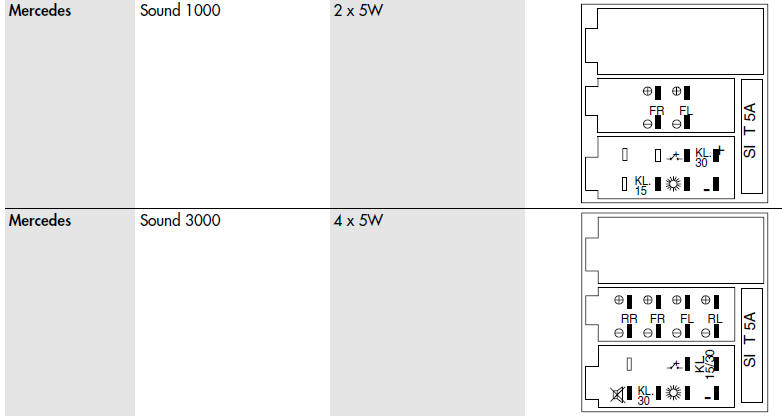

MERCEDES

Mercedes

A

B

4-+12 VOLT BATTERY WIRE

1-Speaker RR+

5-Power Antenna Turn On

2-Speaker RR-

6-Dash Light Dimmer Wire

3-Speaker RF+

7-+12 VOLT IGNITION WIRE

4-Speaker RF-

8-GND

5-Speaker LF+

-

6-Speaker LF-

-

7-Speaker LR+

-

8-Speaker LR-





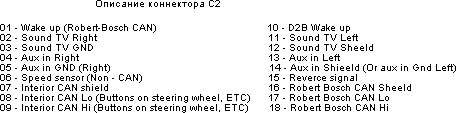

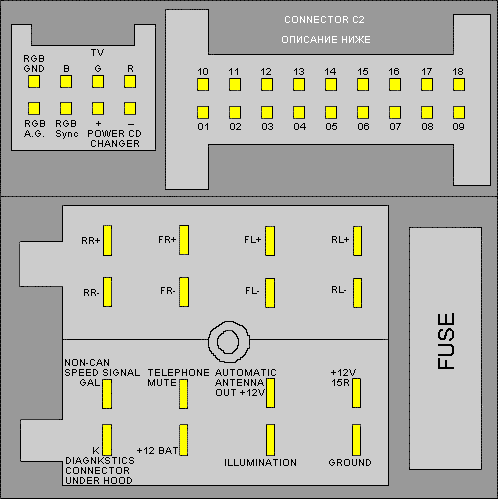

MERCEDES BENZ COMAND 2



MERCEDES BENZ Truckline CC40 no YU3F-18C838-BA






Mercedes Benz Audio 10 by Becker (BE3100) p/n A 210 820 09 86
Mercedes Benz Audio 10 by Becker (BE3200) p/n A 208 820 03 86
Mercedes Benz Audio 30 by Becker (BE3307)
Mercedes Benz Audio 30 APS (BE4705)
Mercedes Benz CD (MF2297) by ALPINE (Japan)
Mercedes Benz Truckline CC25 (BE6046)





Mercedes Benz Exquisit by Becker (BE1490)
Mercedes Benz Special by Becker (BE2210, BE1650)




Mercedes Benz MF2530 (p/n A 203 827 38 42)




Grundig auto radio Sound 1000, Sound 3000







НАЗАД    ДАЛЕЕ





На главную












Научно-популярный образовательный ресурс


Создать сайт бесплатно
