Распиновка разъемов автомагнитол 2






MITSUBISHI CARISMA, COLT, ECLIPSE, PAJERO, LANCER



Mitsubishi CARISMA, COLT, ECLIPSE, PAJERO, LANCER

1-Speaker RR+

8-Speaker LR-

2-Speaker LR+

10-+12 VOLT IGNITION WIRE

3-Power Antenna Turn On

11-+12 VOLT BATTERY WIRE

4-Dash Light Dimmer Wire +

12-Dash Light Dimmer Wire

5-Speaker LF+

13-Speaker LF-

6-Speaker RF+

14-Speaker RF-

7-Speaker RR-

GND-обод разьема





MITSUBISHI RH - 9413



MITSUBISHI AR-2565 FY-2



MITSUBISHI P801 CQ-JB6810L





Mitsubishi II (pm) old models 1989
Lancer from 3 / 96
from 94 Pajero
Colt up to 12/95







MITSUBISHI MEX-810 CDC






National





NISSAN

Nissan





1-Speaker LR+

6-Speaker RF+

11-Speaker RF-

2-Speaker RR+

7-+12 VOLT IGNITION WIRE

12-Power Antenna Turn On

3-Speaker LR-

8-Dash Light Dimmer Wire

13-GND

4-Speaker RR-

9-+12 VOLT BATTERY WIRE

-

5-Speaker LF+

10-Speaker LF-

-





NISSAN PN-9660H



NISSAN CSK-9301MA



NISSAN PP-9997M





BLAUPUNKT MICRA CD BP2346 (NISSAN)
BLAUPUNKT MICRA CD BP2347 (NISSAN)




NISSAN (CLARION) PN-9524U



NISSAN PRIMERA



OPEL Philips SC201, Blaupunkt SC202, Grundig CAR200

Opel

A

B

4-+12 VOLT BATTERY WIRE

1-Speaker RR+ (нет в CAR200)

5-Power Antenna Turn On

2-Speaker RR- (нет в CAR200)

6-Dash Light Dimmer Wire

3-Speaker RF+

7-+12 VOLT IGNITION WIRE

4-Speaker RF-

8-GND

5-Speaker LF+

C

6-Speaker LF-

1-SDA

7-Speaker LR+ (нет в CAR200)

2-SCL

8-Speaker LR- (нет в CAR200)

3-GND

-

4-MCS (MBR)

-





OPEL FRONTERA

Opel Frontera

1-+12 VOLT IGNITION WIRE

12-Speaker RF-

3-+12 VOLT BATTERY WIRE

13-Speaker LF+

4-Dash Light Dimmer Wire

14-Speaker LF-

5-Power Antenna Turn On

15-Speaker LR+

9-Speaker RR+

16-Speaker LR-

10-Speaker RR-

GND-обод разьема

11-Speaker RF+

-





PHILIPS SC804



Grundig R 100

CAR 200



Opel
CD30, CDC30MP3(*3), CDC400 (*4)





styk

złącze główne

złącze A (CD-C)

złącze B

1

głośnik RR+

RSA L(*3)

-

2

głośnik RF+

-

-

3

głośnik LF+

RSA GND (*3)

AUX L (*3)

4

głośnik LR+

RSA SVC(*3)

-

5

głośnik RR-

SUB + (*4)

AUX R (*3)

6

głośnik RF-

El/F BUS(*3)

telefon in -

7

głośnik LF-

RSA R(*3)

-

8

głośnik LR-

-

-

9

CAN H

-

-

10

CAN L

-

masa AUX (*3)

11

mute

GND (Delco)/SUB- (*4)

-

12

masa

-

telefon in +

13

sterowanie anteną

x

x

14

CS-

x

x

15

+12V

x

x

16

CS+

x

x





Opel
CD50 PHONE





styk

złącze główne

złącze A (CD-C)

złącze B

1

głośnik RR+

RSA L

masa mikrofonu

2

głośnik RF+

masa AUX

AIR-BAG

3

głośnik LF+

RSA GND

-

4

głośnik LR+

RSA SVC

-

5

głośnik RR-

-

CGI+

6

głośnik RF-

-

-

7

głośnik LF-

RSA R

mikrofon +

8

głośnik LR-

AUX L

-

9

CAN H

AUX R

SPD

10

CAN L

-

-

11

-

-

CGI-

12

masa

-

-

13

sterowanie anteną

x

x

14

CE-

x

x

15

+12V

x

x

16

CE+

x

x





Grundig Car radio CAR200(D), CAR 2002, R100, SC303

PANASONIC CQ-RD915LEN, DP-200V

Panasonic CQ-RD915LEN, DP-200V





1-TEL MUTE (?)

5-Speaker LR-

9-Dash Light Dimmer Wire (?)

13-Speaker LF-

2-Speaker RR+

6-GND

10-Speaker RF+

14-Power Antenna Turn On

3-Speaker RR-

7-+12 VOLT IGNITION WIRE

11-Speaker RF-

15-+12 VOLT BATTERY WIRE

4-Speaker LR+

8-+12 VOLT BATTERY WIRE

12-Speaker LF+

16-GND





PANASONIC CQ-H03,04,06,07,08; CQ-J03, CQ-D50, CQ-RD50

Panasonic CQ-H03,04,06,07,08; CQ-J03, CQ-D50, CQ-RD50, CQ-DP31EG, CQ-DP41EG, ...





1-Line out R (не все)

8-Speaker LR-

15-Speaker RF

2-Line out L (не все)

9-+12 VOLT BATTERY WIRE  (не все)

16-Speaker RR+

3-ANT GND

10-+12 VOLT IGNITION WIRE

17-Speaker LF-

5-Speaker RF+

11-TEL MUTE (не все)

18-Speaker LR+

6-Speaker RR-

12-GND Line out (не все)

19-GND

7-Speaker LF+

13-ANT

20-Power Antenna Turn On



PANASONIC CQ-DP31EG, CQ-DP41EG

1-Line out RR

6-Speaker RR-

11-TEL MUTE

16-Speaker RR+

2-Line out LR

7-Speaker LF+

12-GND Line out

17-Speaker LF-

3-ANT GND

8-Speaker LR-

13-ANT

18-Speaker LR+

4-Line out LF

9-+12 VOLT BATTERY WIRE

14-Line out RF

19-GND

5-Speaker RF+

10-+12 VOLT IGNITION WIRE

15-Speaker RF-

20-Power Antenna Turn On





PANASONIC CQ-F66




PANASONIC CQ-C1400N (Made In China)





PANASONIC RDS CA01 66 9C0A (CQ-LM0120A MATSUSHITA)



PEUGEOT

Peugeot

1-Speaker RF+

8-Speaker RF-

2-Speaker RR+

9-Speaker RR-

3-GND

10-+12 VOLT BATTERY WIRE

4-Power Antenna Turn On

11-Dash Light Dimmer Wire

5-+12 VOLT IGNITION WIRE

12-Speaker LR-

6-Speaker LR+

13-Speaker LF-

7-Speaker LF+

-





Peugeot
навигация





styk

złącze główne

złącze A (CD-C)

złącze B

1

głośnik RR+

FAN N

GND

2

głośnik RF+

CALL SP E-

-

3

głośnik LF+

MIC -

CDC +B

4

głośnik LR+

AUX R

CDC R

5

głośnik RR-

CAN L

-

6

głośnik RF-

DISP ON/OFF

VAN DATA/

7

głośnik LF-

FAN P

-

8

głośnik LR-

CALL SP E+

CDC signal GND

9

+ DISP

MIC +

-

10

VAN DATA H

AUX L

CDC L

11

SW. 14V

AUX audio GND

VAN DATA

12

+12V BU

CAN H

+ VAN

13

VAN DATA N

x

x

14

+VAN DISP

x

x

15

GND

x

x

16

GND

x

x





Peugeot 207 RD4 Wire diagram




Part A


Pin 1: Right Rear audio +
Pin 2: audio Right front +
Pin 3: audio Left front +
Pin 4: Left Rear audio +
Pin 5: Right Rear audio -
Pin 6: Right front audio -
Pin 7: audio front Left -
Pin 8: audio Rear Left -
___ (contacts 1 to 8 - is the amplifier output power, the dynamics)
Pin 9: Not used
Pin 10: data CAN High
Pin 11: +12 v switched remote - the signal output to activate external devices (amp)
Pin 12: battery +12 volt powered radio
Pin 13: CAN data low
Pin 14: external mute - input signal to mute the music, such as the handsfree
Pin 15: Not used
Pin 16: ground - "mass" of the unit,

Part B
Pin 1: audio right AUX 2
Pin 2: audio ground AUX 2
Pin 3: Not used
Pin 4: audio right AUX 1 - right channel AUX input
Pin 5: Not used
Pin 6: Not used
Pin 7: audio left AUX 2
Pin 8: Not used
Pin 9: Not used (microphone)
Pin 10: audio left AUX 1 - left channel AUX input
Pin 11: audio ground AUX 1 - "earth" AUX input
Pin 12: Not used

Part C
Pin 1: ground CDC (cd-Changer)
Pin 2: data CAN low CDC
Pin 3: + battery CDC
Pin 4: Right audio CDC
Pin 5: Not used
Pin 6: Not used
Pin 7: CAN data High
Pin 8: audio ground CDC
Pin 9: Not used
Pin 10: audio left CDC
Pin 11: Not used
Pin 12: not used






PHILIPS

PHILIPS SC201, CAR400, CCR600



PHILIPS SC201

A

B

C

4-+12 VOLT BATTERY WIRE

1-Speaker RR+

1-SDA

5-Power Antenna Turn On

2-Speaker RR-

2-SCL

6-Dash Light Dimmer Wire

3-Speaker RF+

3-GND

7-+12 VOLT IGNITION WIRE

4-Speaker RF-

4MCS(MBR)

8-GND

5-Speaker LF+

-

-

6-Speaker LF-

-

-

7-Speaker LR+

-

-

8-Speaker LR-

-



PHILIPS CAR400

A

B

C

1-SDV

1-Speaker RR+

1-SDA

2-SAC

2-Speaker RR-

2-SCL

3-TEL MUTE

3-Speaker RF+

3-TIS

4-+12 VOLT BATTERY WIRE

4-Speaker RF-

4-MRQ

5-Power Antenna Turn On

5-Speaker LF+

6-DDL

6-Dash Light Dimmer Wire

6-Speaker LF-

-

7-+12 VOLT IGNITION WIRE

7-Speaker LR+

-

8-GND

8-Speaker LR-

-



PHILIPS CCR600

A

B

C

1-SDV

1-Speaker RR+

1-SDA

2-SAC

2-Speaker RR-

2-SCL

3-TEL MUTE

3-Speaker RF+

3-TIS

4-+12 VOLT BATTERY WIRE

4-Speaker RF-

4-MRQ

5-Power Antenna Turn On

5-Speaker LF+

5-CL

6-Dash Light Dimmer Wire

6-Speaker LF-

6-DDL

7-+12 VOLT IGNITION WIRE

7-Speaker LR+

7-CH

8-GND

8-Speaker LR-

8-IH

-

-

9-CDL

-

-

10-CDR



PHILIPS DC670

Philips DC670

1-GND

2-+12 VOLT IGNITION WIRE

3-Dash Light Dimmer Wire

4-Power Antenna Turn On

5-+12 VOLT BATTERY WIRE

6-  -----

7-  -----



PHILIPS

PHILIPS

A

B

C

1-TEL MUTE

1-Speaker RR+

1-Line out LR

2-REMOTE GND

2-Speaker RR-

2-Line out RR

3-REMOTE

3-Speaker RF+

3-GND Line out

4-+12 VOLT BATTERY WIRE

4-Speaker RF-

4-Line out LF

5-Power Antenna Turn On

5-Speaker LF+

5-Line out RF

6-Dash Light Dimmer Wire

6-Speaker LF-

13-D2B+

7-+12 VOLT IGNITION WIRE

7-Speaker LR+

14-D2B-

8-GND

8-Speaker LR-

15-GND

-

-

16-+12V PERMANENT

-

-

17-+12V SWITCH

-

-

18-AUDIO GND

-

-

19-AUDIO L

-

-

20-AUDIO R

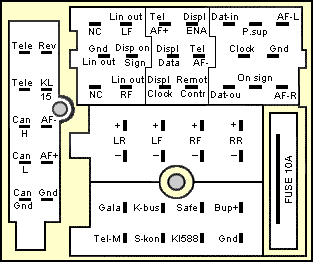

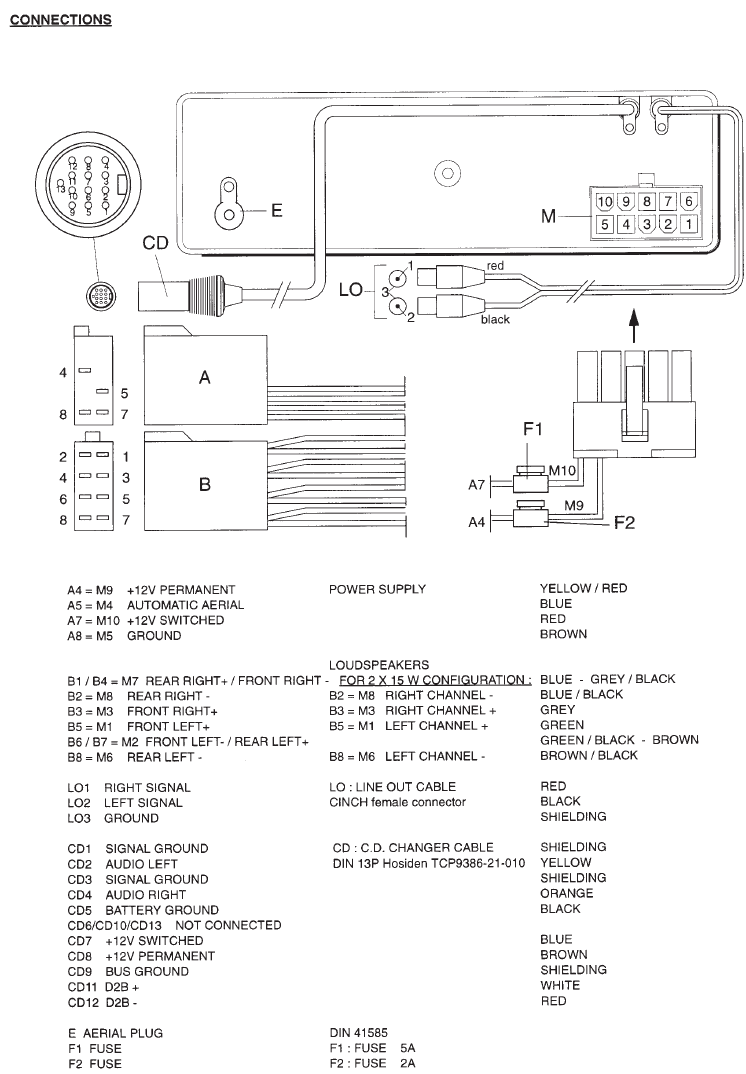

Схематическое расположение разъёмов

A1

Phone mute

B1

Rear right +

C1

Line out LR

A4

Plus accessories or permanent

B2

Rear right -

C2

Line out RR

A5

+ Antenna

B3

Front right +

C3

Line out GND

A6

Pivot light

B4

Front right -

C4

Line out FL

A7

Plus permanent or accessories

B5

Front lrft +

C5

Line out FR

A8

GND

B6

Front left -

C6

+ Switched

-

-

B7

Rear left +

C13

Bus D2B +

G1

Gateway (I2C bus access)

B8

Rear left -

C14

Bus D2B -

G2

Gateway (I2C bus access)

-

-

C15

Bus GND

-

-

E

Aerial plug

C16

+ Permanent

-

-

-

-

C17

+ Swiched

-

-

F

Fuse

C18

Imput reference

-

-

-

-

C19

Imput left

-

-

-

-

C20

Imput right



Разъёмы питания и акустики.





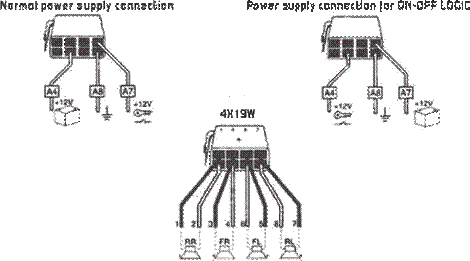

PHILIPS 69DC902/00



PHILIPS 22DC 665/62R



PHILIPS SC-201



PHILIPS CAR400



PHILIPS CCR600



PHILIPS DC670



PHILIPS

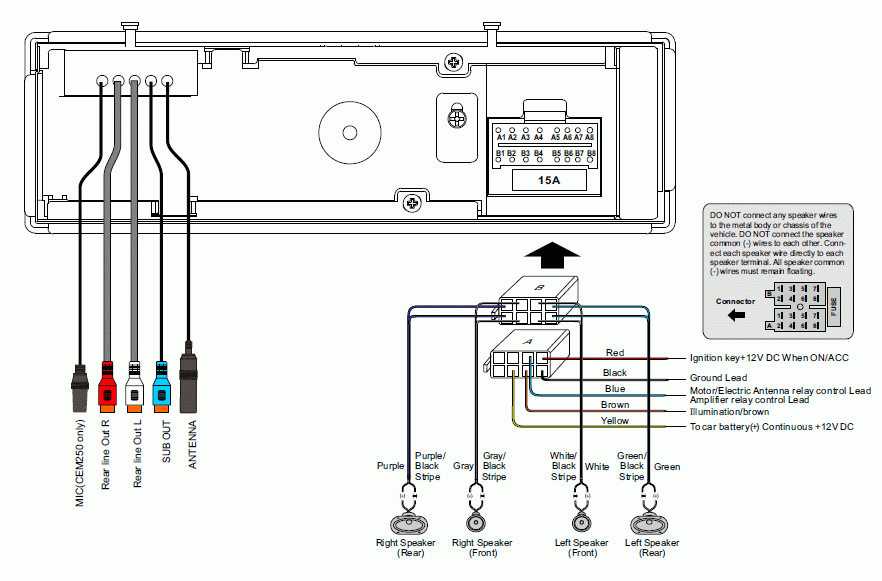

Philips CEM250



PHILIPS 22RC224, 22RC228, 22RC238, 22RC248, 22RC258



PIONEER KEH-1010QR

KEH-1010QR

6-Speaker LF,RF-

14-GND

19-Speaker RF+

8-Speaker LR,RR-

16-antenna

20-Speaker LR+

9-Speaker LF+

17-GND Aнт

-

10-Speaker RR+

18-+12 VOLT BATTERY WIRE

-





PIONEER KE-1900

Pioneer KE-1900

1-Power Antenna Turn On

3-Speaker RF+

5-Speaker LF+

7-+12 VOLT IGNITION WIRE

2-+12 VOLT BATTERY WIRE

4-Speaker RF- (???)

6-Speaker LF- (???)

8-GND





PIONEER KE-1700SDK

Pioneer KE-1700SDK

1-Speaker LF+

14-GND Speakerов

2-Speaker RF+

17-GND

7-+12 VOLT IGNITION WIRE

18-GND (с обода разьема)

8-Power Antenna Turn On

20-ANT GND

10-ANT

-





 PIONEER KEH-1950

1-Power Antenna Turn On

5-Speaker LF-

9-Speaker LR-

2-+12 VOLT IGNITION WIRE

6-Speaker LF+

10-Speaker RR+

3-Speaker RF-

7-+12 VOLT BATTERY WIRE

11-Speaker RR-

4-Speaker RF+

8-Speaker LR+

12-GND





PIONEER KEH-2500R

Pioneer KEH-2500R, ...

1-Power Antenna Turn On

5-Speaker LF-

9-Speaker LR-

2-+12 VOLT IGNITION WIRE

6-Speaker LF+

10-Speaker RR+

3-Speaker RF-

7-+12 VOLT BATTERY WIRE

11-Speaker RR-

4-Speaker RF+

8-Speaker LR+

12-GND





PIONEER KEH-2600, KEH-3600

KEH-2600, KEH-3600

1-Power Antenna Turn On

5-Speaker RF+

9-Speaker RR+

2-+12 VOLT IGNITION WIRE

6-Speaker RF-

10-Speaker RR-

3-Speaker LF+

7-Speaker LR+

11-+12 VOLT BATTERY WIRE

4-Speaker LF-

8-Speaker LR-

12-GND





PIONEER KEH-3800 (RDS)

Pioneer KEH-3800 (RDS)

1-TEL MUTE

6-Speaker LF-

11-Speaker RR+

2-Power Antenna Turn On

7-Speaker LF+

12-Speaker RR-

3-+12 VOLT IGNITION WIRE

8-+12 VOLT BATTERY WIRE

13-GND

4-Speaker RF-

9-Speaker LR+

-

5-Speaker RF+

10-Speaker LR-

-





PIONEER DEH-P443R

Pioneer DEH-P443R

1-GND

7-Speaker RF-

12-DRSW

2-Power Antenna Turn On

8-Speaker RF+

13-Speaker LR-

4-TEL MUTE

9-+12 VOLT BATTERY WIRE

14-Speaker LR+

5-Speaker LF-

10-Dash Light Dimmer Wire

15-Speaker RR-

6-Speaker LF+

11-+12 VOLT IGNITION WIRE

16-Speaker RR+





PIONEER DEH-624R

Pioneer DEH-624R

1-Speaker LR-

6-Speaker LF-

11-Speaker RF+

2-Speaker RR-

7-Speaker LR+

12-Speaker LF+

3-Power Antenna Turn On

8-Speaker RR+

-

4-GND

9-+12 VOLT BATTERY WIRE

-

5-Speaker RF-

10-+12 VOLT IGNITION WIRE

-





PIONEER DEH-790SDK

Pioneer DEH-790SDK

1-TEL MUTE

6-GND

2-+12 VOLT IGNITION WIRE

7-+12 VOLT BATTERY WIRE

3-Dash Light Dimmer Wire

8-Booster

4-Speaker RF+

9-Speaker RF-

5-Speaker LF+

10-Speaker LF-





PIONEER DEH-M980RDS, KEH-M8300RDS, KEH-M9300RDS

Pioneer DEH-M980RDS, KEH-M8300RDS, KEH-M9300RDS

1-Speaker LR-

6-Speaker RF-

11-+12 VOLT BATTERY WIRE

2-Speaker RR-

7-Speaker LF-

12-Power Antenna Turn On

3-TEL MUTE

8-Speaker LR+

13-Speaker RF+

4-+12 VOLT IGNITION WIRE

9-Speaker RR+

14-Speaker LF+

5-Dash Light Dimmer Wire

10-GND

-





PIONEER KEH-M7005W

Pioneer KEH-M7400RDS

1-+12 VOLT BATTERY WIRE

6-+12 VOLT BATTERY WIRE

2-Speaker  RF+

7-Speaker RR+

3-Speaker  LF+

8-Speaker RR-

4-Speaker F-

9-Speaker LR+

5-GND

10-Speaker LR-





PIONEER KEH-M7400RDS

Pioneer KEH-M7400RDS

1-ANT REMOTE

5-Speaker LF+

8-Speaker RR+

2-+12 VOLT IGNITION WIRE

6-Speaker  L-

9-Speaker  R-

4-+12 VOLT BATTERY WIRE

7-Speaker LR+

10-Speaker RF+





PIONEER DEQ-9200

Pioneer DEQ-9200

1-GND

3-ANT REMOTE

2-+12 VOLT IGNITION WIRE

4-Dash Light Dimmer Wire





PIONEER KEH- M9800

1-Speaker RR-

Ч

10-Общий



17-Питание память



2-Speaker RR+



11-Батарея 12в



18-Gnd лин. выход



3-Gnd



12-Speaker LR-

Ч

19-Выход L лин



4-Speaker RF-

Ч

13-Speaker LR+



20-Выход R лин



5-Speaker LF-

Ч

14-Speaker RF+



-



9-Питание antennaенна B+



15-Speaker LF+



-







PIONEER

Pioneer

1-+12 VOLT BATTERY WIRE

3-ANT REMOTE

9-Speaker L+

11-ANT

2-+12 VOLT IGNITION WIRE

7-Speaker R+

10-GND Speaker

12-ANT GND





PIONEER 3TF0 (FX-MG6006ZH BOSE changer ACURA)



PIONEER KEX-M9076ZT (LEXUS)



2000 Pontiac Sunfire Stereo Wiring

Permanant 12V+ Orange
Accessories 12V+ Yellow
Ground - Black
Illumination Gray
Dimmer Brown;Antenna Trigger;Pink
Antenna Location Right Front
Front Speakers 4 x 6 Doors
Front Left + Tan
Front Left - Gray
Front Right + Light Green
Front Right - Dark Green
Rear Speakers 6 x 9 Rear Deck
Rear Left + Brown
Rear Left - Yellow
Rear Right + Dark Blue
Rear Right - Light Blue





RENAULT R5, R19, R21, ESPACE, TWINGO

Renault R5, R19, R21, Espace, Twingo

1-+12 VOLT IGNITION WIRE

9-Speaker RR+

14-Speaker LF-

2-GND

10-Speaker RR-

15-Speaker LR+

3-+12 VOLT BATTERY WIRE

11-Speaker RF+

16-Speaker LR-

4-Dash Light Dimmer Wire

12-Speaker RF-

-

5-Power Antenna Turn On

13-Speaker LF+

-

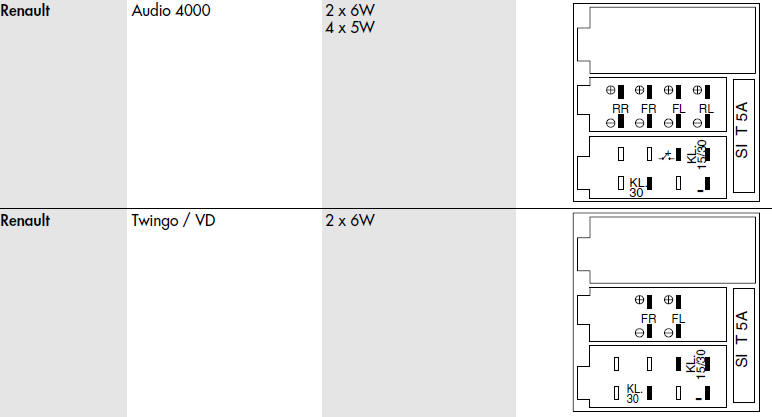

Grundig auto radio Audio 4000, Twingo/VD







ROADSTAR

Roadstar

1-GND

11-Dash Light Dimmer Wire

2-+12 VOLT IGNITION WIRE

12-+12 VOLT BATTERY WIRE

3-Power Antenna Turn On

16-Speaker RF+

7-Speaker LF+

17-Speaker R-

8-Speaker L-

18-Speaker RR+

9-Speaker LR+

A-ANT

10-TEL MUTE

B-ANT GND





ROADSTAR RS-110000HQL

ROADSTAR RS-110000HQL

1-ANTEN

8-Speaker RR+

13-Speaker LF+

4-Line outL

9-Speaker RR,LR-

14-GND

5-Line outR

10-Speaker LR+

15-Power Antenna Turn On

6-+12 VOLT BATTERY WIRE

11-Speaker RF+

16-GND

7-+12 VOLT IGNITION WIRE

12-Speaker RF,LF-

20-GND ANTENA





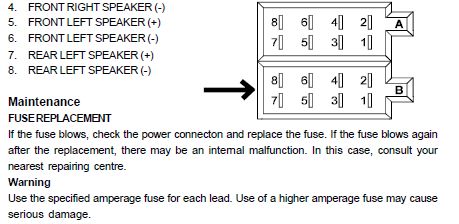

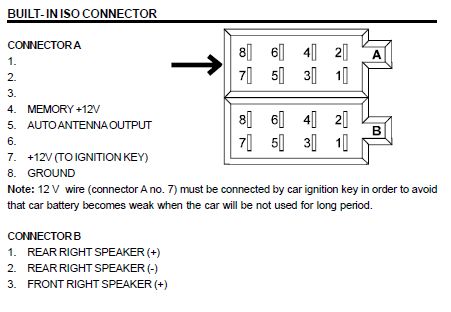

Roadstar CD-900USMP



SAMSUNG LUXMAN (Model: U-301)





SAMSUNG SC-6450

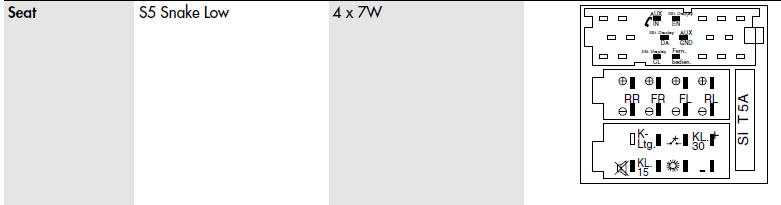

SEAT RADIO HIGH



Seat Scala

Blaupunkt Gamma



  Grundig car radio

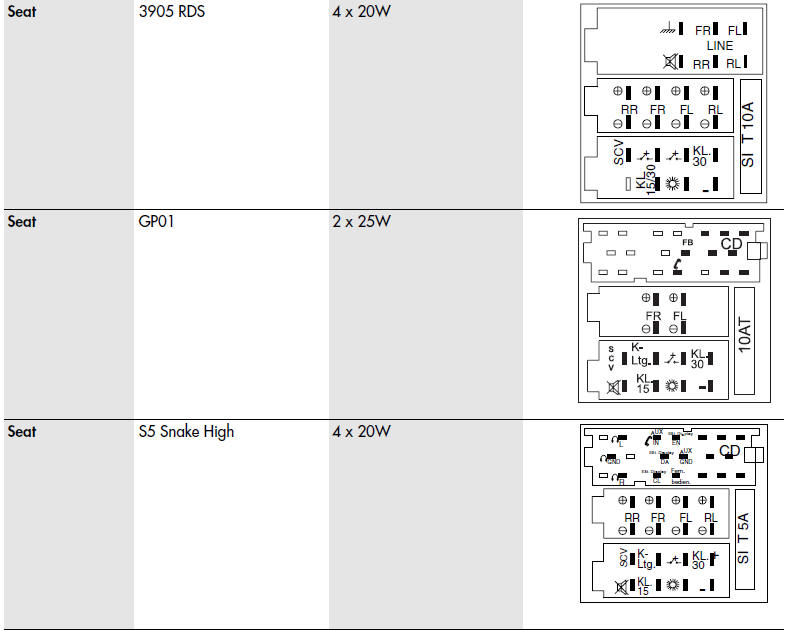

  Seat S5 SnakeHigh



Grundig auto radio 3905 RDS, GP01



SHIVAKI SCA-9511




Siemens VDO  models 22DC259 / 279 / 280





( A1 Speed) ( A2 NC) ( A3 Tel.Mute) ( A4 v.Permanentes +12) ( A5 Output +12 v)

( A6 Ilum) ( A7 v.Accesorios +12) ( A8 GND)

( B1 + RR) (RR-B2) ( B3 + FR) ( B4 -FR) ( B5 + FL) ( B6 -FL) ( B7 + RL) ( B8 -RL)

( C1 sda display) ( C2 display scl) ( C3 display mrq) ( C4 NC) ( C5 Radio on) ( C6 GND)



Original colors of yellow connector for the display



( a Brown) ( 2 Green) ( 3 Orange) ( 4 NC) ( 5 White) (6 Lilac)

Another color version : ( 1 Red) ( 2 Violet with brown) ( 3 Yellow) ( 4 Black) ( 5 green) ( 6 2 Black)



Siemens VDO  CD 5104 CD5304





( A4 +12 V Direct) ( A5 Output +12 v.Antena.) ( A6 Lighting) ( A7 +12 V Accessories)

( A8 GND) ( B1 RR +) ( B2 RR-) (B3 RF +) ( B4 RF-) ( B5 LF + )

 ( B6 LF-) ( B7 LR +) ( B8 LR-) C1, C2, C3, C4, C5 and C6 Remote.



SKODA VERONA

Skoda Verona

A

B

4-+12 VOLT BATTERY WIRE

1-Speaker RF-

5-Power Antenna Turn On

2-Speaker LR-

6-Dash Light Dimmer Wire

3-Speaker RF+

7-+12 VOLT IGNITION WIRE

4-Speaker LR+

8-GND

5-Speaker LF+

C

6-Speaker RR+

1-10  ----

7-Speaker LF-

-

8-Speaker RR-





SKODA AUTO SYMPHONY




FABIA CAR RADIO BEAT

Enter code
– Switch on the radio if the ignition is on. SAFE is displayed and then
1000.
– Enter the safety code using the station keys - .
– Confirm the safety code by pressing the station key .
If you have confirmed a wrongly entered code, you can repeat once again the entire
process.
If the code number is entered incorrectly for the second time, the unit will be
blocked for approx. one hour. It is only possible to repeat the entry of the safety
code after an hour has expired and while the unit is switched on and the ignition
key remains in the ignition lock.
The cycle - two attempts, blocked for an hour - furthermore applies.







Smart
radio model: Grundig
model of the car: Fortwo 450 and Roadster



Pin Number

Wire Colour

Connection

A1



No Connection

A2



No Connection

A3



No Connection

A4

Blue

12v Switched

A5



Remote Out

A6

Brown/White or Green/Blue

Lighting Input

A7

Pink/White or Pink

12v Permanent

A8

Brown

Earth

B1

Yellow

Tweeter Right +

B2

Yellow/Black

Tweeter Right -

B3

Green/Yellow

Speaker Right +

B4

Grey/Green

Speaker Right -

B5

Green/Blue

Speaker Left +

B6

Grey/Brown

Speaker Left -

B7

Green

Tweeter Left +

B8

Green/Black

Tweeter Left -

C1



No Connection

C2



No Connection

C3



No Connection

C4



No Connection

C5



No Connection

C6



12v Permanent

C7



12v Switched

C8



Radio Mute

C9



Earth

C10



12v Lighting

C11



Phone Speaker +

C12



Phone Speaker -

C13



CD Changer Signal

C14



No Connection

C15



Earth

C16



12v Permanent

C17



12v Switched

C18



CD Changer Input -

C19



CD Changer Input Left

C20



CD Changer Input Right





Smart
radio: Becker Navigation and Sound BE6040  car: Fortwo 450 i Roadster



Pin Number

Connection

A1

GALA Speed Impulse

A2

K-line

A3

Mute

A4

12v Permanent

A5

12v Remote Out

A6

Lighting Input

A7

12v Switched

A8

Earth

B1

Tweeter Right +

B2

Tweeter Right -

B3

Speaker Right +

B4

Speaker Right -

B5

Speaker Left +

B6

Speaker Left -

B7

Tweeter Left +

B8

Tweeter Left -

C1

CAN High

C2

CAN Low

C3

Reverse Signal

C4

Wake Up

C5

12v Permanent Output

C6

Earth

D1

GPS Antenna





Smart
car radio :Visteon radio 9 i 10
car: 999cc Fortwo



Pin Number

Wire Colour

Connection

A1

Grey Blue

Lighting input, Speedo pin12

A2



No Connection

A3

Black Grey

12v Switched

A4

Red Blue

12v Permanent, Sub pin3

A5

Black

Remote out, Sub pin8

A6



No Connection

A7



No Connection

A8

Brown

Earth

B1

Blue

Tweeter Right +, Sub pin5

B2

Blue Brown

Tweeter Right -, Sub pin2

B3

Orange

Speaker Right +

B4

Brown Orange

Speaker Right -

B5

Green

Speaker Left +, Sub pin4

B6

Brown Green

Speaker Left -, Sub pin1

B7

Yellow

Tweeter Left +

B8

Yellow Brown

Tweeter Left -

C1

Violet

Line In Left

C2

Green

Line In Right

C3

Black

Line Ground

C4

Yellow

Mute

C5

Blue

Switched live

C6

Red

Permanent live

C7

Brown

Earth





Smart
car radio: Harman Becker Radio 5
car: Forfour



Pin Number

Wire Colour

Connection

A1

Green Red

Hands Free Module

A2



No Connection

A3

Black Blue

Hands Free Module

A4

Red Black

12v Permanent, Sub pin3

A5

White

Remote Out, Sub pin8

A6

Brown Red

LIN Voltage

A7

Brown

12v

A8

Black

Earth

B1

Yellow Red

Rear Right Speaker +

B2

Grey Red

Rear Right Speaker -, Sub pin5

B3

White Red

Right Door Speaker +, Tweeter +, Sub pin2

B4

Black Red

Right Door Speaker -, Tweeter -

B5

White Blue

Left Door Speaker +, Tweeter +, Sub pin1

B6

Brown Green

Left Door Speaker -, Tweeter -

B7

Yellow Blue

Rear Left Speaker +

B8

Grey

Rear Left Speaker -, Sub pin4

C1

White

Line In Left

C2

Brown

Line In Right

C3

Shield

Line Ground

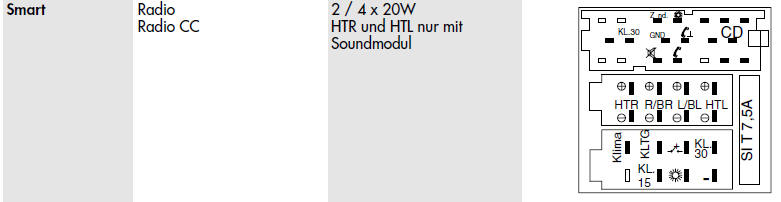

Grundig auto radio CC









SONY XR-7300, XR-7200, XR-7201, XR-7202, XR-7400

Sony XR-7300, XR-7200, XR-7201, XR-7202, XR-7400

1-ANT

12-CD DATA OUT

26-Speaker LF+

3-LINE OUT LR

13-CD CLOCK IN

27-Speaker LR-

4-GND LINE OUT

14-CD DATA IN

28-CD MUTE

5-LINE OUT RR

16-+12 VOLT IGNITION WIRE

29-Speaker RF+

6-CD IN LCH

17-GND

30-Speaker RR-

7-CD IN GND

18-ANT GND

31-ANT CONT

8-CD IN RCH

22-Speaker LF-

32-CD ACC CONT

9-CD RESET

23-Speaker LR+

33-AMP CONT

10-CD CLOCK OUT

24-Speaker RF-

34-B UP

11-CD DSPL SELECT

25-Speaker RR+

-





SONY CDX-R79VF

Sony CDX-R79VF

1-LINE OUT LF

7-LINE OUT LR

17-ANT REM

2-GND ЛИН. ВЫХОДОВ FRONT

8-GND LINE OUT REAR

20-+12 VOLT IGNITION WIRE

3-LINE OUT RF

9-LINE OUT RR

21-ANT GND

4-AUX L IN

11-DK

24-REM IN

5-AUX IN GND

13-ANT

25-+12 VOLT BATTERY WIRE

6-AUX R IN

16-REM OUT

28-GND





SONY XR-502

Sony XR-502, XR-7082

1-Speaker LR+

10-Speaker RF-

19-CD DATA IN

2-Speaker LR-

11-+12 VOLT IGNITION WIRE

20-PWR ANT

3-Speaker LF+

12-GND

21-CD CLOCK IN

4-Speaker LF-

13-CD DISP SEL

22-CD RESET

5-+12 VOLT BATTERY WIRE

14-CD IN L

23-CD MUTE

6-GND

15-CD IN R

24-CD ACC CONT

7-Speaker RR+

16-CD IN GND

25-ANT GND

8-Speaker RR-

17-CD DATA OUT

26-ANT

9-Speaker RF+

18-CD CLOCK OUT

-





SONY XR-7082

1-Speaker LR+

7-Speaker RR+

12-GND

17-LINE OUT L

23-AUX INPUT GND

2-Speaker LR-

8-Speaker RR-

13-DK OUT

18-GND LINE OUT

24-AUX INPUT RCH

3-Speaker LF+

9-Speaker RF+

14-BOOSTER

19-LINE OUT R

25-ANT GND

4-Speaker LF-

10-Speaker RF-

15-REM-IN

21-POWER ANTENNA TURN ON

26-ANT

5-+12 VOLT BATTERY WIRE

11-+12 VOLT IGNITION WIRE

16-REM-OUT

22-AUX INPUT LCH

-





SONY XR-3700RDS, XR-3750, XR-3690RDS, XR-6700RDS, XR-C700

Sony XR-3700RDS, XR-3690RDS, XR-6700RDS, XR-C700

1-Speaker LF+

5-Speaker RR+

9-Booster

13-+12 VOLT IGNITION WIRE

2-Speaker LF-

6-Speaker RR-

10-TEL MUTE

14-TST

3-Speaker LR+

7-Speaker RF+

11-Power Antenna Turn On

15-GND

4-Speaker LR-

8-Speaker RF-

12-Dash Light Dimmer Wire

16-+12 VOLT BATTERY WIRE





SONY XR-7042, XR-4403

Sony XR-7042, XR-4403, XR-U800RDS, ...

1-GND

5-Speaker RF+

8-+12 VOLT BATTERY WIRE

12-Speaker RR-

15-Speaker LR-

2-Power Antenna Turn On

6-Speaker LF+

9-+12 VOLT IGNITION WIRE

13-Speaker RF-

-

4-Speaker RR+

7-Speaker LR+

10-Booster

14-Speaker LF-

-





SONY CDX-5072

Sony CDX-5072

1-GND

9-Speaker LR-

15-Speaker RF-

2-Power Antenna Turn On

10-+12 VOLT BATTERY WIRE

16-Speaker RF+

5-Speaker RR-

11-+12 VOLT IGNITION WIRE

17-Speaker LF+

6-Speaker RR+

12-Booster

18-Speaker LF-

8-Speaker LR+

13-TEL MUTE

-





SONY MDX-U1RDS

Sony MDX-U1RDS

1-Power Antenna Turn On

3-TEL MUTE

5-+12 VOLT IGNITION WIRE

2-GND

4-Booster

6-+12 VOLT BATTERY WIRE





SONY XR-C210, XR-C214

SONY XR-C210

1-GND

10-+12 VOLT BATTERY WIRE

16-Speaker RF-

5-Speaker RR+

11-+12 VOLT IGNITION WIRE

17-Speaker LF+

6-Speaker RR-

12-Power Antenna Turn On

18-Speaker LF-

8-Speaker LR+

13-TEL MUTE

-

9-Speaker LR-

15-Speaker RF+

-





SONY XR-4252

SONY XR-4252

1-Speaker LR+

5-Speaker LF+

9-Power Antenna Turn On

14-ANT

2-Speaker LR-

6-Speaker LF-

10-back up

15-+12 VOLT BATTERY WIRE

3-Speaker RR-

7-Speaker RF-

11-GND

16-back up

4-Speaker RR+

8-Speaker RF+

13-GNDantenna

17-GND





SONY XR- 7040

Sony XR-7040

1-ACC+



9-Speaker RR-

Ч

13-Speaker LF-

Ч

2-GND



10-Speaker RF+



14-Speaker LR+



3-B+



11-Speaker RF-

Ч

15-Speaker LR-

Ч

8-Speaker RR+



12-Speaker LF+



-







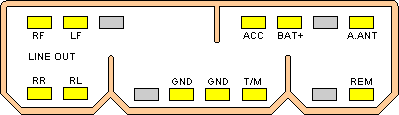

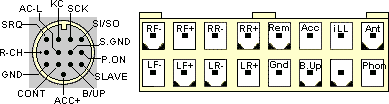

SONY XR-C6093SP



SOUND CRAFT AR-7500



SSANG-YONG MUSSO, KORANDO

Ssang-Yong Musso, Korando

1-+12 VOLT IGNITION WIRE

9-SPEAKER RR+

14-SPEAKER LF-

2-GND

10-SPEAKER RR-

15-SPEAKER LR+

3-+12 VOLT BATTERY WIRE

11-SPEAKER RF+

16-SPEAKER LR-

4-DASH LIGHT DIMMER WIRE

12-SPEAKER RF-

-

5-Power Antenna Turn On

13-SPEAKER LF+

-





SSANG YONG BTL-9022KI



SUBARU LEGACY, IMPREZA, VIVIO

Subaru Legacy, Impreza, Vivio

1-+12 VOLT IGNITION WIRE

11-SPEAKER RF+

2-GND

12-SPEAKER RF-

3-+12 VOLT BATTERY WIRE

13-SPEAKER LF+

4-DASH LIGHT DIMMER WIRE

14-SPEAKER LF-

5-Power Antenna Turn On

15-SPEAKER LR+

9-SPEAKER RR+

16-SPEAKER LR-

10-SPEAKER RR-

-





SUBARU P120




SUPRA SCR 7030H



SUZUKI SWIFT

Suzuki Swift

1-+12 VOLT IGNITION WIRE

12-SPEAKER RF-

3-+12 VOLT BATTERY WIRE

13-SPEAKER LF+

4-DASH LIGHT DIMMER WIRE

14-SPEAKER LF-

5-Power Antenna Turn On

15-SPEAKER LR+

9-SPEAKER RR+

16-SPEAKER LR-

10-SPEAKER RR-

-

11-SPEAKER RF+

GND-ОБОД РАЗЬЕМА





SUZUKI Model:391001-65010




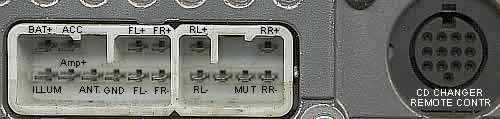

SUZUKI Model:39101-65D10

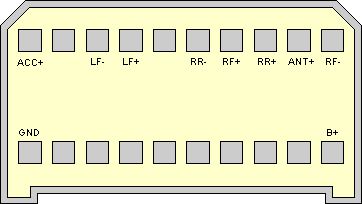

Clarion Co. Ltd JAPAN (PS-1626D-B)



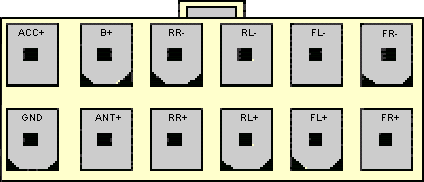

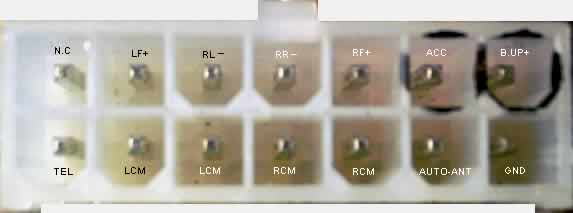

TEC - 576PLL




TOYOTA

Toyota

1-+12 VOLT IGNITION WIRE

9-Speaker RR+

14-Speaker LF-

2-GND

10-Speaker RR-

15-Speaker LR+

3-+12 VOLT BATTERY WIRE

11-Speaker RF+

16-Speaker LR-

4-Dash Light Dimmer Wire

12-Speaker RF-

-

5-Power Antenna Turn On

13-Speaker LF+

-





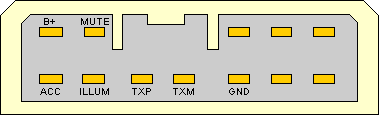

TOYOTA 18302 made in philipines

Toyota 18302





A

B

C

1-Speaker R+

1-Speaker FR+

1-Speaker RR+

2-Speaker L+

2-Speaker FL+

2-Speaker RL+

3-Общий (GND)

3-ACC +B

3-Speaker RR-

4-MUTE

4-BU +B

4-Tel-Mute

5-BU +B

5-Speaker FR-

5-NC

6-Speaker R-

6-Speaker FL-

6-Speaker RL-

7-Speaker L-

7-Общий (GND)

7-

8-Общий (GND)

8-Питание antenna +B

8-

9- TX -

9-AMP+

9-

10-TX +

10-iLL +B

10-

11-NC

11-

11-

12-ACC +B

12-

12-





TOYOTA 57101

Toyota-57101





B

A

1-Speaker FR+

1-Speaker RR+

2-Speaker FL+

2-Speaker RL+

3-ACC +B

3-Speaker RR-

4-BU +B

4-Tel-Mute

5-Speaker FR-

5-NC

6-Speaker FL-

6-Speaker RL-

7-Общий (GND)

7-

8-Питание antenna +B

8-

9-AMP+

9-

10-iLL +B

10-






TOYOTA CDX-M9406 ZT



TOYOTA CD-1235 TL1D



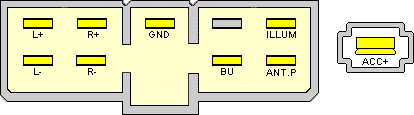

TOYOTA CE-3371



TOYOTA CR-1930




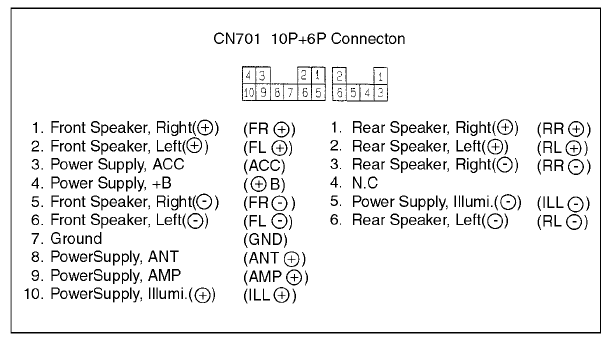

TOYOTA 56009 (Model 8612-60230) CQ-TT4650A



TOYOTA 58402 (Model 86120-2B180) CQ-YS6020A Made In Lapan



Toyota 51703 to 57400 - 57411 to 72400



( a v.Directos +12) ( 2 +12 v.Accesorios) ( 3 and 11 Left Speaker D) ( 4 and 12 Talking T L)

( 5 and 13 Dercho Speaker D) ( 6 and 16 Talking T Law) ( 7 Light board) ( 8 free) ( 9 +12 v.Ant output.) ( 10 GND).



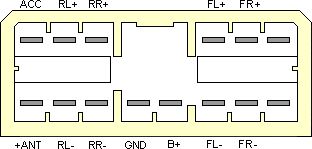

TOYOTA - 58404



TOYOTA 13702
CE-2650TL1C by Fujitsu Ten




TOYOTA 52702
TOYOTA 55809
TOYOTA 13704
Main contacts to connect





TOYOTA 18302 by Fujitsu Ten ( Philippines ).
TOYOTA 16810 by Fujitsu Ten ( USA )
TOYOTA 18403 by Fujitsu Ten ( Japan )
TOYOTA P3916 (FX-MG9427)
TOYOTA TF4300 (38408) by Fujitsu Ten ( Spain )





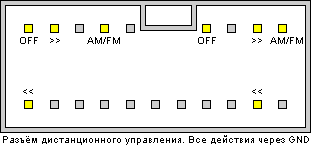

TOYOTA TM6000 CR, TOYOTA 6200
TOYOTA15402, TOYOTA 55401

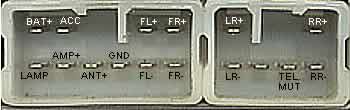

TOYOTA 57101, TOYOTA 57404

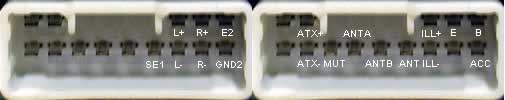

TOYOTA 2619, TOYOTA 89106





TOYOTA 86120-60350

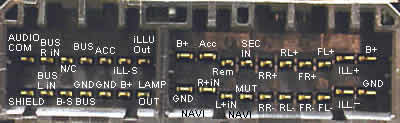

Lexus Premium Sound System





PHILIPS CQ-JS7300K-TOYOTA-SM

UNIVERSUM CR 439X

UNIVERSUM CR-439X

4-Line out L

8-Speaker RR+

12-Speaker RF,LF-

16-GND

5-Line out R

9-Speaker RR,LR-

13-Speaker LF+

17-GND

6-+12 VOLT BATTERY WIRE

10-Speaker LR+

14-GND

-

7-+12 VOLT IGNITION WIRE

11-Speaker RF+

15-Power Antenna Turn On

-





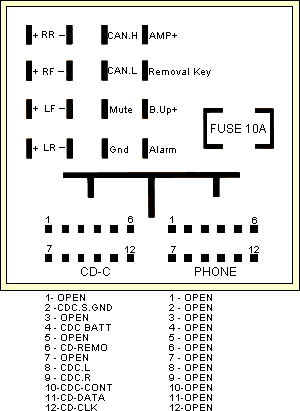

VDO CD9303UB-CV RDS



VDO TR7322





Siemens VDO  models 22DC259 / 279 / 280





( A1 Speed) ( A2 NC) ( A3 Tel.Mute) ( A4 v.Permanentes +12)

 ( A5 Output +12 v) ( A6 Ilum) ( A7 v.Accesorios +12) ( A8 GND)

( B1 + RR) (RR-B2) ( B3 + FR) ( B4 -FR) ( B5 + FL) ( B6 -FL) ( B7 + RL) ( B8 -RL)

( C1 sda display) ( C2 display scl) ( C3 display mrq) ( C4 NC) ( C5 Radio on) ( C6 GND)



Original colors of yellow connector for the display



( a Brown) ( 2 Green) ( 3 Orange) ( 4 NC) ( 5 White) (6 Lilac)

Another color version : ( 1 Red) ( 2 Violet with brown) ( 3 Yellow) ( 4 Black) ( 5 green) ( 6 2 Black)

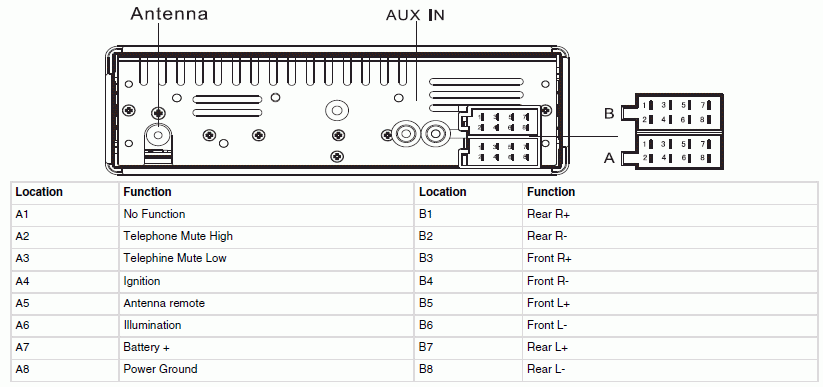

Siemens VDO  CD 5104 CD5304





( A4 +12 V Direct) ( A5 Output +12 v.Antena.) ( A6 Lighting) ( A7 +12 V Accessories)

( A8 GND) ( B1 RR +) ( B2 RR-) (B3 RF +) ( B4 RF-)

 (B5 LF + ) ( B6 LF-) ( B7 LR +) ( B8 LR-) C1, C2, C3, C4, C5 and C6 Remote.



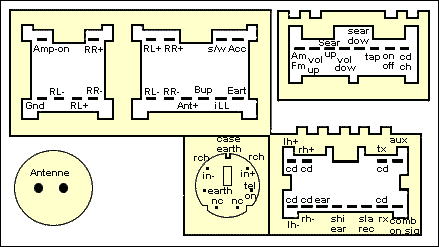

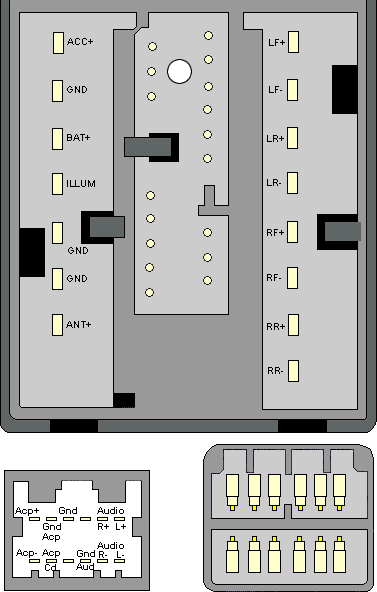

VISTEON RXR8F-18K876-AGLGR
(JAGUAR 9000 PREMIUM SOUND)



VW SHARAN, FORD GALAXY, SEAT ALHAMBRA

VW Sharan, Ford Galaxy, Seat Alhambra

1-+12 VOLT IGNITION WIRE

9-SPEAKER RR+

14-SPEAKER LF-

2-GND

10-SPEAKER RR-

15-SPEAKER LR+

3-+12 VOLT BATTERY WIRE

11-SPEAKER RF+

16-SPEAKER LR-

4-DASH LIGHT DIMMER WIRE

12-SPEAKER RF-

-

5-Power Antenna Turn On

13-SPEAKER LF+

-





VW BETA V

VW BETA V

A

C

1-GALA

7-TEL+

2-TEL MUTE

11-REM-C

3-V.BUS

12-TEL-

4-+12 VOLT BATTERY WIRE

13-DATA IN

5-+12V

14-DATA OUT

6-Dash Light Dimmer Wire

15-CLOCK

7-+12 VOLT IGNITION WIRE

16-UB+

8-GND

-

B

18-COM (GND)

3-Speaker RF+

19-AF-L

4-Speaker RF-

20-AF-R

5-Speaker LF+

-

6-Speaker LF-

-





VW CQ-JV1060L

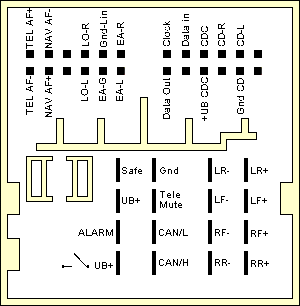

VW Radio Navigation System MCD  Blaupunkt







VW Navigation System
The main power connector, CD , speakers



http://www.tehnomagazin.com/images/vw-fakra.gif





Connector navigation system





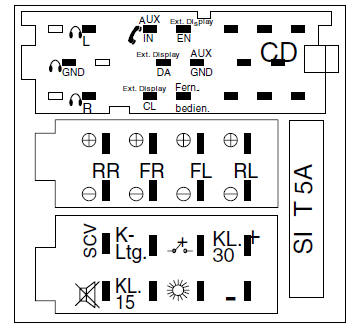

Blaupunkt

VW Gamma Dotmatrix
7 649 207 360
7 649 207 460 (China Kit)
VW Gamma Dotmatrix Release
7 649 208 360
VW Gamma ohne/without RP 6:00
7 641 207 360
VW Gamma mit/with RP 6:00
7 641 208 360
VW Gamma Release (Nokia)
7 648 231 060/360
VW Gamma (Nokia)
7 648 232 060/360
7 648 232 460 (China Kit)
VW Gamma T4 Release
7 648 237 060/360
VW Gamma T4
7 648 239 060/360

VW Gamma Release
7 648 225 060/360
VW Gamma
7 648 227 060/360
VW New Beetle
7 648 229 060/360

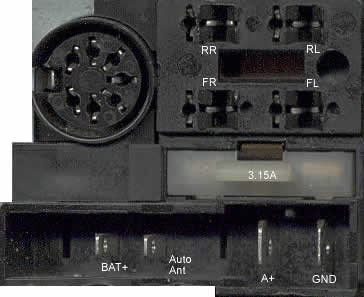

Blaupunkt alpha CC Europa

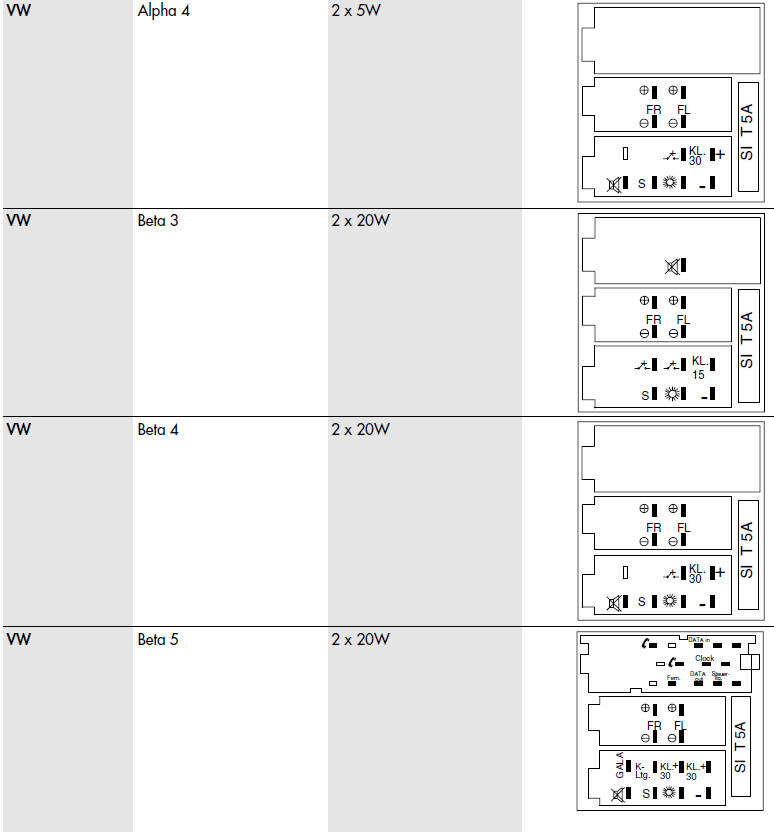

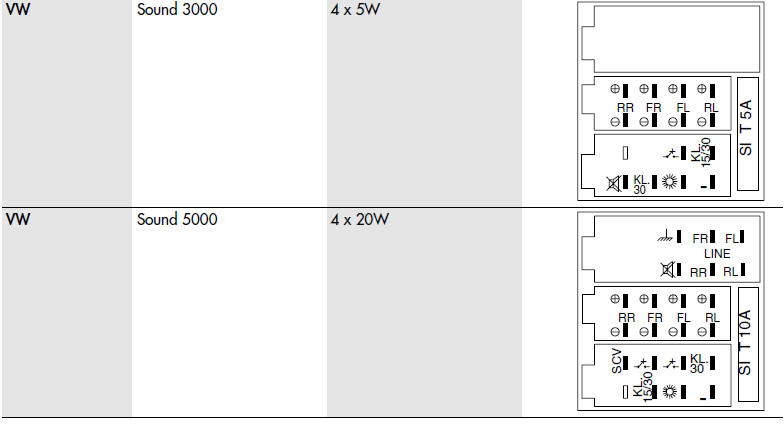

Grundig auto radio Alpha 4, Beta3, Beta4, Beta5, Sound 5000



VOLVO 850, 960, S70, V70, S40, V40

Volvo 850, 960, S70, V70, S40, V40

1-+12 VOLT IGNITION WIRE

11-Speaker RF+

2-GND

12-SPEAKER RF-

3-+12 VOLT BATTERY WIRE

13-SPEAKER LF+

4-DASH LIGHT DIMMER WIRE

14-SPEAKER LF-

5-Power Antenna Turn On

15-SPEAKER LR+

9-SPEAKER RR+

16-SPEAKER LR-

10-SPEAKER RR-

-







VOLVO CR-603, CR-606

Volvo CR-603, CR-606

1-SPEAKER R+

8-SPEAKER L+

2-SPEAKER R-

9-SPEAKER L-

5-GND

13-+12 VOLT IGNITION WIRE

6-Power Antenna Turn On

-





VOLVO CT-503

http://www.tehnomagazin.com/images/volvo-ct-503.gif



SC 710 - SC 810 - SC 811 - SC 813 - SC 816 - SC 900 - CR 905





( 1 and 7 -GND) (2 - Dimmer) ( 3 - v.M +12) ( 4 -output + antenna or booster) ( 5.6.13 and 14 SalidaAudio unconfirmed) ( 8 - +12 v.Accesorios) ( 9 - +12 v.sense SC-816) ( 10 -Rheostat T / Neg.) ( 11 -Tel.) ( 12 - Mute) ( 15 - FL +) ( 16 -FL-) ( 17 -RL +) ( 18 - RL -) ( 19 -FR +) ( 20 -FR-) (21 -NC) ( 22 -NC) ( 23 -RR +) ( 24 -RR-)





YAMAHA YM1050EQ

YAMAHA YM 1050 EQ

1-ANT+

9-Speaker LR-  LF-

16-GND

2-LIN - L+

10-SPEAKER LF+

18-LIN - R-

3-LIN - R+

11-SPEAKER RR+

19-LIN - L-

5-+12 VOLT IGNITION WIRE

12-Speaker RR-  RF-

20-+12 VOLT BATTERY WIRE

7-SPEAKER LR+

14-SPEAKER RF+

-





YAMAHA YM9600

Yamaha YM9600

1-ANT

13-SPEAKER RR+ (R+ HI)

3-SPEAKER LR+ (L+ HI)

14-SPEAKER RR-  RF+

4-SPEAKER LR-  LF+

15-SPEAKER RF- (R- HI)

5-SPEAKER LF- (L- HI)

19-+12 VOLT IGNITION WIRE

9-Power Antenna Turn On

20-GND

10-+12 VOLT BATTERY WIRE

-

11-ANT GND

A - ANT GND





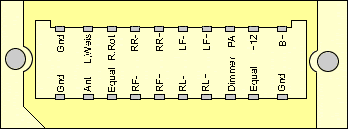

YAMAHA YCR-325S





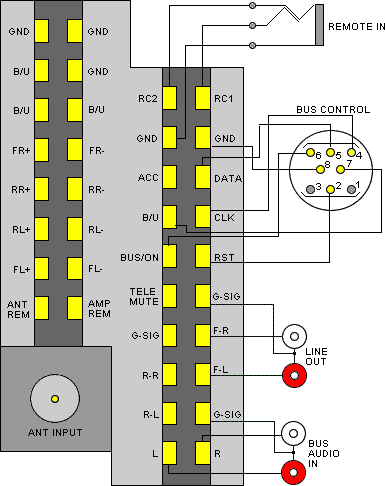

YAMAHA YM-9900RC



1990 Yugo GV Stereo Wiring

Constant 12V+ Red/Green

Switched 12V+ Yellow

Ground Black

Illumination n/a

Dimmer n/a

Antenna Trigger n/a

Front Speakers 3 1/2" Doors

Left Front (+) Blue

Left Front (-) Gray/Black

Right Front (+) Blue

Right Front (-) Gray/Black

Rear Speakers 4" x 6" Rear Deck

Left Rear (+) White

Left Rear (-) Gray/Black

Right Rear (+) White

Right Rear (-) Gray/Black





НАЗАД





На главную












Научно-популярный образовательный ресурс


Создать сайт бесплатно
